Safety Belt Buckle - Third Row
›
Notes
Safety Belt Buckle - Third Row: Notes

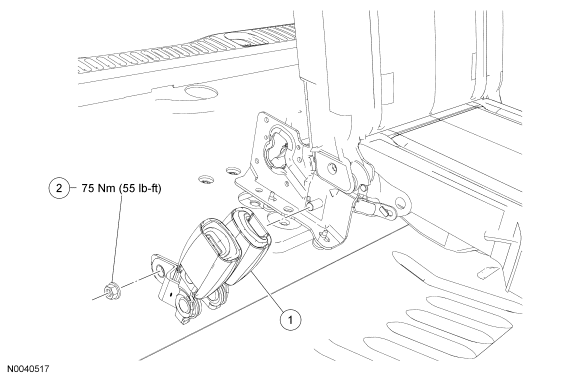

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specification - Third Row
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
613048
Dual safety belt buckle
2
-
Safety belt buckle nut
