Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Transmission Jack	077-00116

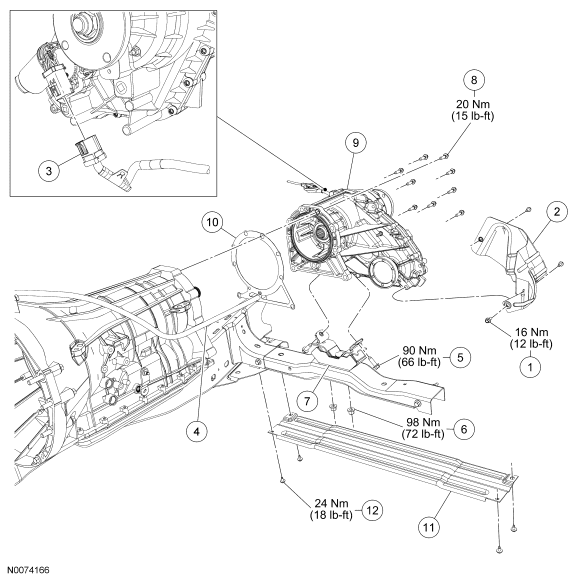

Fig 1: Transfer Case Components - 4.0L With 5R55 With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706695-S900	Heat shield bolt (3 required)
2	7F168	Heat shield
3	14A099	Transfer case wire harness
4	-	Transfer case vent tube
5	W707429-S900	Transmission insulator-to-transfer case bolt (2 required)
6	N621945-S301	Crossmember-to-transmission insulator nuts (2 required)
7	7A443	Transfer case-to-transmission bolt (7 required)
8	6068	Transmission insulator
9	7A195	Transfer case
10	7086	Transfer case-to-transmission gasket
11	-	Skid plate
12	-	Skid plate bolts (4 required)

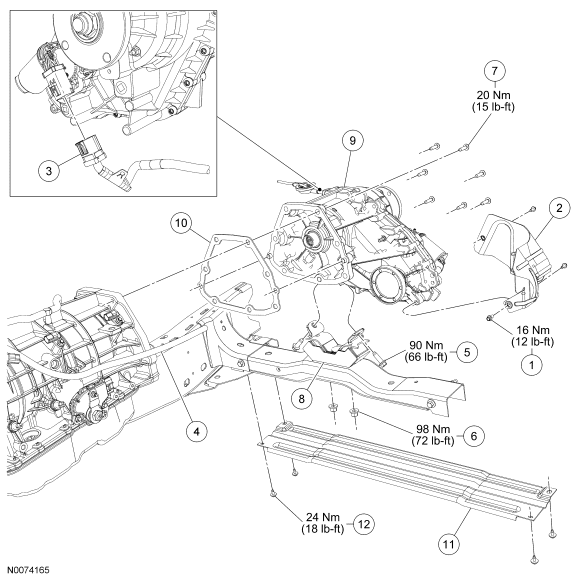

Fig 2: Transfer Case Components - 4.6L with 6R60 With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706695-S900	Heat shield bolt (3 required)
2	7F168	Heat shield
3	14A099	Transfer case wire harness
4	-	Transfer case vent tube
5	W707429-S900	Transmission insulator-to-transfer case bolts (2 required)
6	N621945-S301	Crossmember-to-transmission insulator nuts (2 required)
7	6068	Transmission insulator
8	W500311-S309	Transfer case-to-transmission bolt (7 required)
9	7A195	Transfer case
10	7086	Transfer case-to-transmission gasket
11	-	Skid plate
12	-	Skid plate bolts (4 required)
