Transfer Case: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Transmission Jack | 077-00116 |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |

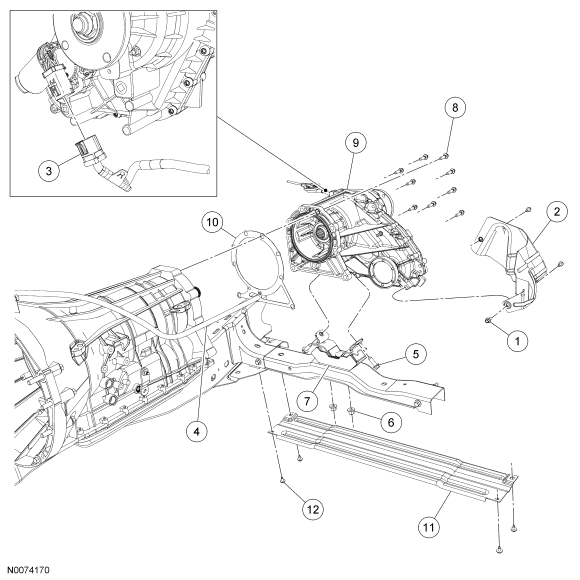

| Item | Part Number | Description |
|---|---|---|
| 1 | W706695-S900 | Heat shield bolt (3 required) |
| 2 | 7F168 | Heat shield |
| 3 | 14A099 | Transfer case wire harness |
| 4 | - | Transfer case vent tube |
| 5 | W707429-S900 | Transmission insulator-to-transfer case bolt (2 required) |
| 6 | N621945-S301 | Crossmember-to-transmission insulator nuts (2 required) |
| 7 | 7A443 | Transfer case-to-transmission bolt (7 required) |
| 8 | 6068 | Transmission insulator |
| 9 | 7A195 | Transfer case |
| 10 | 7086 | Transfer case-to-transmission gasket |
| 11 | - | Skid plate |
| 12 | - | Skid plate bolts (4 required) |

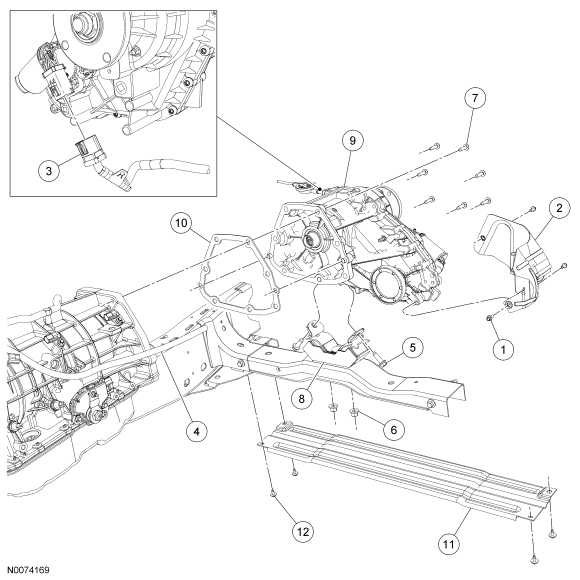

| Item | Part Number | Description |
|---|---|---|
| 1 | W706695-S900 | Heat shield bolt (3 required) |
| 2 | 7F168 | Heat shield |
| 3 | 14A099 | Transfer case wire harness |
| 4 | - | Transfer case vent tube |
| 5 | W707429-S900 | Transmission insulator-to-transfer case bolts (2 required) |
| 6 | N621945-S301 | Crossmember-to-transmission insulator nuts (2 required) |
| 7 | 6068 | Transmission insulator |
| 8 | W500311-S309 | Transfer case-to-transmission bolt (7 required) |
| 9 | 7A195 | Transfer case |
| 10 | 7086 | Transfer case-to-transmission gasket |
| 11 | - | Skid plate |
| 12 | - | Skid plate bolts (4 required) |
