Wheel Speed Sensor - Rear: Notes

NOTE: LH side shown, RH side similar.

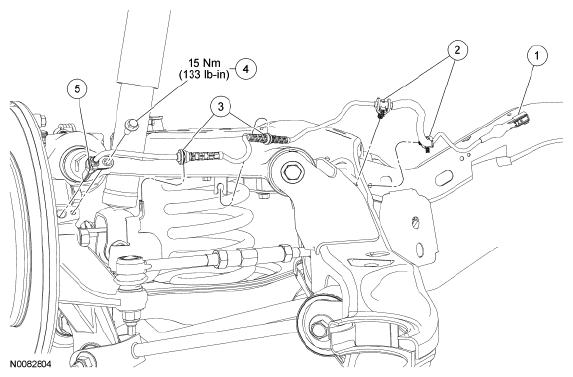

Fig 1: Wheel Speed Sensor Replacement Components - Rear With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 2C216)
2	-	Wheel speed sensor pin-type retainers (part of 2C190 LH/ 2C216 RH)
3	-	Wheel speed sensor harness retainers (part of 2C190 LH/ 2C216 RH)
4	W505255	Wheel speed sensor bolt
5	2C190	Wheel speed sensor
