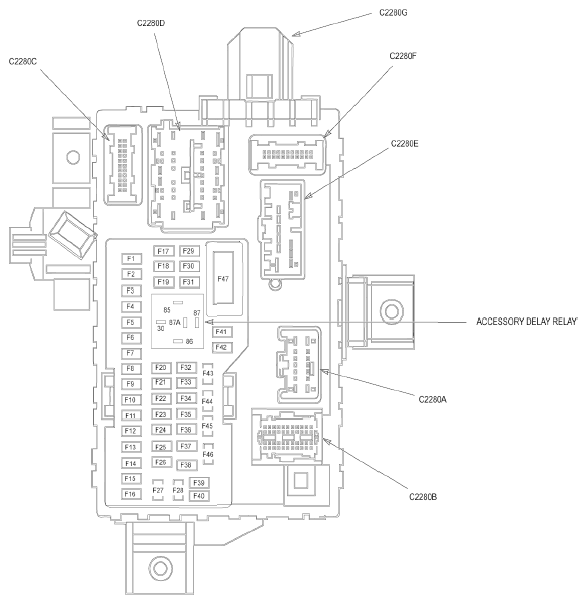

Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.
SMART JUNCTION BOX (SJB) FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 30 | Power window motor, driver side front |
| F2 | - | Not used |
| F3 | 15 | Rear Entertainment Module (RETM) |
| F4 | 30 | DC/AC inverter module |
| F5 | 10 | Keypad switch assembly, Floor shifter Field Effect Transistor (FET) |
| F6 | 20 | Front park/turn lamps, Rear lamp assemblies, Auxiliary relay box |
| F7 | 10 | Headlamp assembly, left (non-HID) |
| F8 | 10 | Headlamp assembly, right (non-HID) |
| F9 | 15 | Interior/map lamp assemblies |
| F10 | 15 | Exterior rear view mirrors illumination |
| F11 | 10 | 4X4 control module |
| F12 | 7.5 | Not used |
| F13 | 5 | Exterior rear view mirror switch, Driver Seat Module (DSM) - with memory, Adjustable pedal switch, Keypad switch assembly |
| F14 | 10 | Liftgate/Trunk Module (LTM), Clock, Accessory protocol interface module (APIM), Front display interface module (FDIM) |
| F15 | 10 | HVAC module |
| F16 | 15 | Front control interface module (FCIM) |
| F17 | 20 | Door lock actuators, Liftgate lock actuator, Liftgate/Trunk Module (LTM) |
| F18 | 20 | Dual climate controlled seat module, Second row power fold seat motors |
| F19 | 25 | Roof opening panel module |
| F20 | 15 | Data Link Connector (DLC), Driver side front seat control switch |
| F21 | 15 | Fog lamp relay |
| F22 | 15 | Front park/turn lamps, Rear lamp assemblies. Front lamp assemblies License plate lamps |
| F23 | 15 | High beam lamps |
| F24 | 20 | Horn |
| F25 | 10 | Vanity mirror, Interior/map lamp assemblies, Second row seat control switches |
| F26 | 10 | Instrument Cluster (IC) |
| F27 | 20 | Ignition switch |
| F28 | 5 | Audio Control Module (ACM) |
| F29 | 5 | Instrument Cluster (IC) |
| F30 | 5 | Floor shifter |
| F31 | 10 | Not used |
| F32 | 10 | Restraints Control Module (RCM) |
| F33 | 10 | Not used |
| F34 | 5 | Anti-lock brake system (ABS) module, Console refrigeration relay, Stability control sensor cluster |
| F35 | 10 | 4X4 control module, Parking Aid Module (PAM), Steering angle sensor module (SASM), Rear heated seat module, Dual climate controlled seat module, Video camera, DC/AC inverter module |
| F36 | 5 | Passive anti-theft transceiver |
| F37 | 10 | Not used |
| F38 | - | Not used |
| F39 | 20 | Audio Control Module (ACM) |
| F40 | 20 | Rear heated seat module |
| F41 | 15 | Door lock switches, Auto-dimming interior mirror unit, Roof opening panel switch. Roof opening panel module, Ambient lighting switch, Ambient lighting module, Driver side front power window motor |
| F42 | 10 | Not used |
| F43 | 10 | Auxiliary blower motor relay, Rear window defrost relay |
| F44 | 10 | Not used |
| F45 | 5 | Wiper run/park relay, Blower motor relay |
| F46 | 7.5 | Centerstack switch assembly, Occupant Classification System Module (OCSM) |
| F47 | 30 c.b. | Passenger and rear window control switches |
