Console Refrigeration Module Connector - C3415
Console Refrigeration Module Connector - C3415

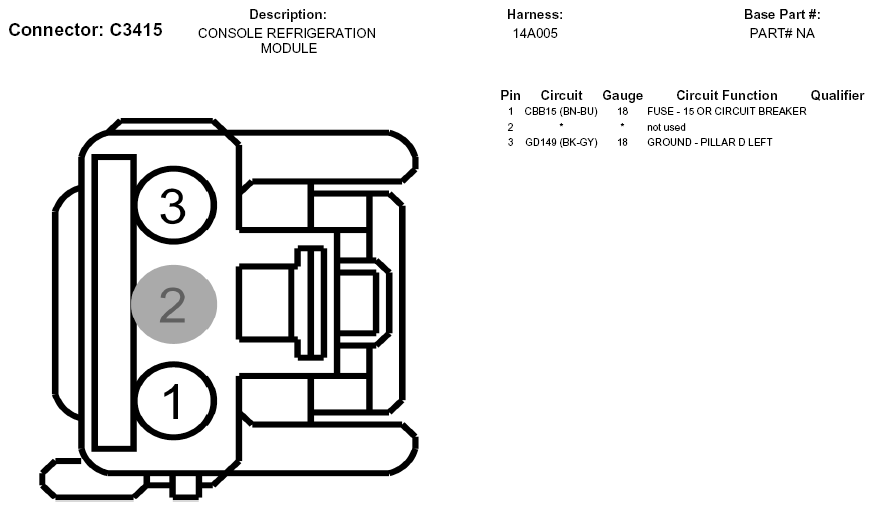

Fig 1: Console Refrigeration Module Connector End View (C3415)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
