Driver Safety Canopy Module Connector - C9018

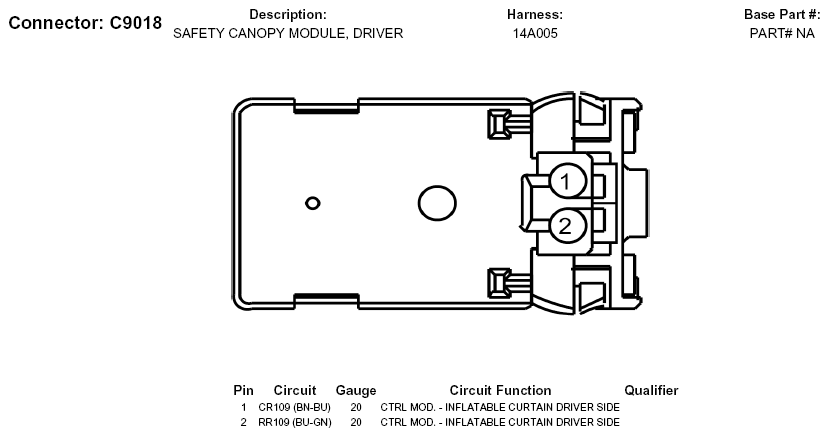

Fig 1: Driver Safety Canopy Module Connector End View (C9018)
G05777112Courtesy of FORD MOTOR CO.
