Front Power Liftgate Open/Close Switch Connector - C2269
Front Power Liftgate Open/Close Switch Connector - C2269

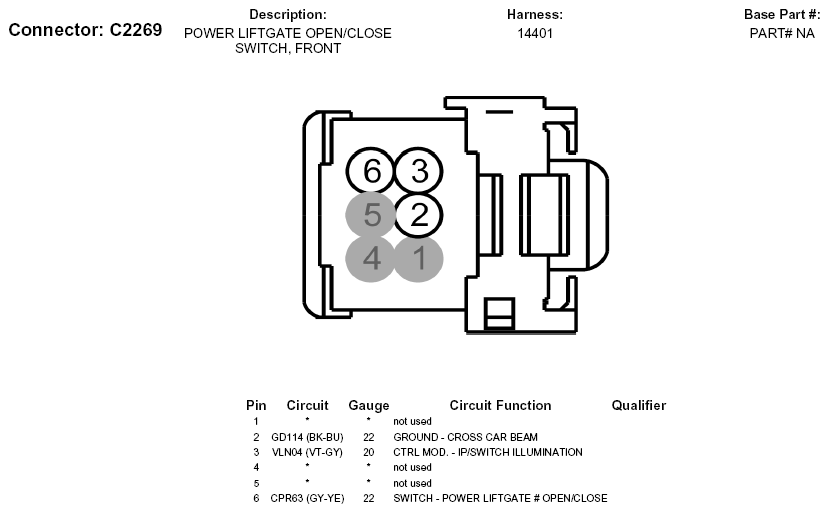

Fig 1: Front Power Liftgate Open/Close Switch Connector End View (C2269)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
