Passenger Safety Canopy Module Connector - C9019
Passenger Safety Canopy Module Connector - C9019

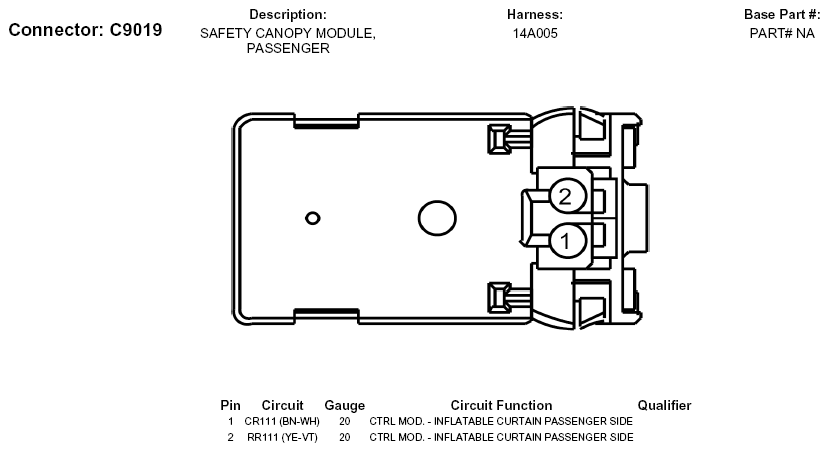

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
