Rear Entertainment Module Connector - C9029

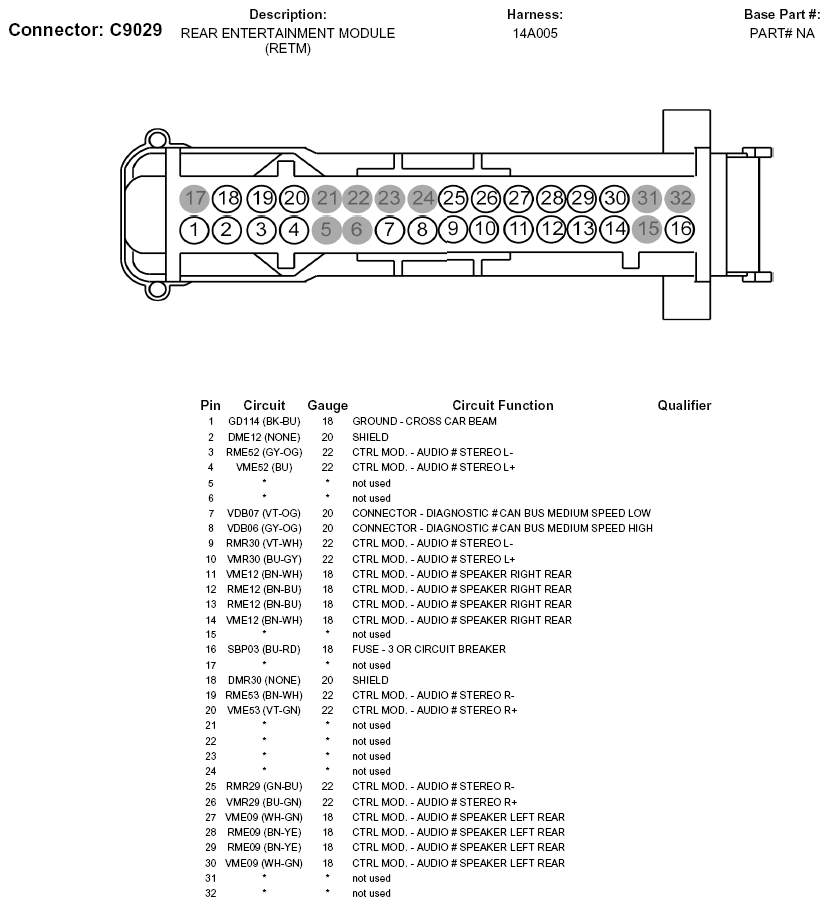

Fig 1: Rear Entertainment Module Connector End View (C9029)
G05777116Courtesy of FORD MOTOR CO.
