Safety Belt Buckle - Second Row: Notes

NOTE: 40 percent shown, 60 percent similar.

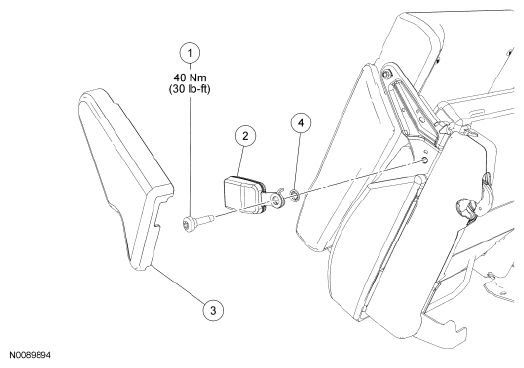

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specification - Second Row

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Safety belt buckle bolt (part of 60044)
2	60044	Safety belt buckle
3	-	Inboard pivot cover
4	-	Lock washer (part of 60044)
