Transaxle Filler Tube: Notes

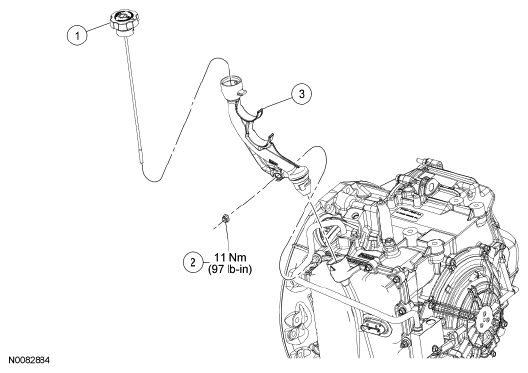

Fig 1: Transaxle Filler Tube Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	7A020	Transmission fluid level indicator
2	W520101	Transmission fluid filler tube nut
3	7A228	Transmission fluid filler tube
