Anti-Lock Brake System Module Connector - C155, C155

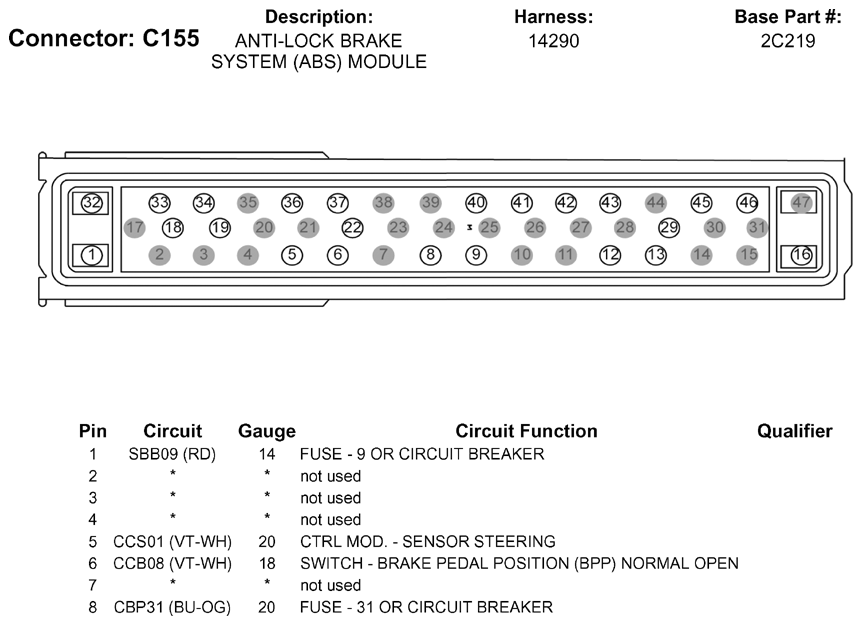

Fig 1: Anti-Lock Brake System Module Connector End View (C155) (1 Of 2)
G05791023Courtesy of FORD MOTOR CO.

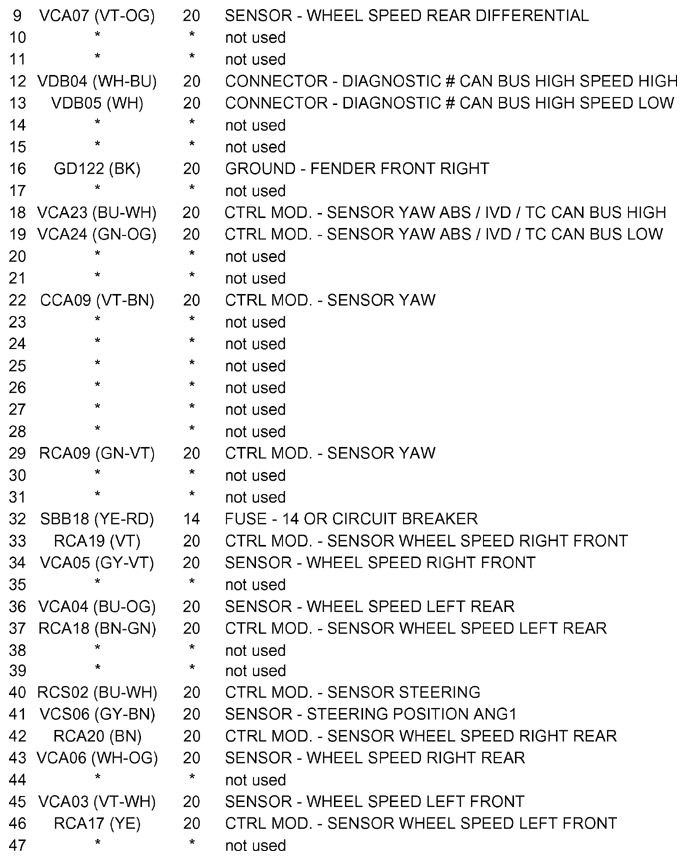

Fig 2: Anti-Lock Brake System Module Connector End View (C155) (2 Of 2)
G05791024Courtesy of FORD MOTOR CO.
