Home › Ford › 2009 › Focus S, Automatic › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Occupant Classification System Module Connector - C3285

Occupant Classification System Module Connector - C3285

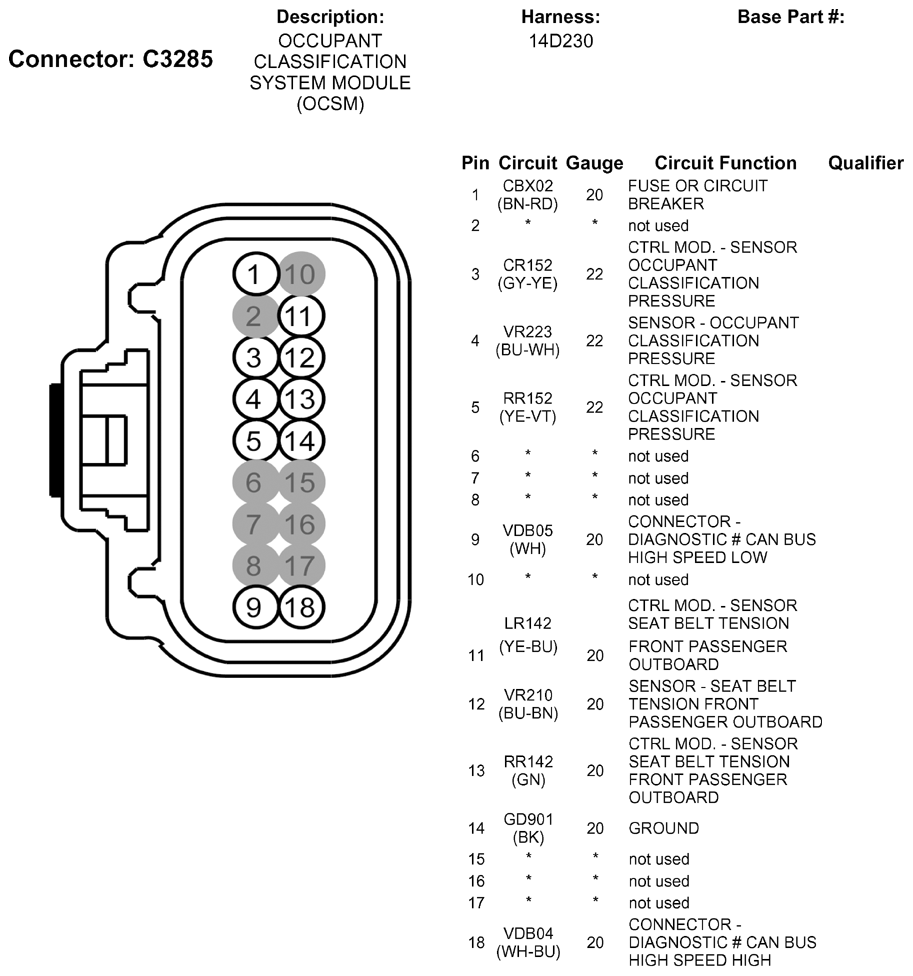

Fig 1: Occupant Classification System Module Connector End View (C3285)
G05791202Courtesy of FORD MOTOR CO.
