Leakage Inspection: Notes

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	100W/12 Volt DC UV Lamp	164-R0751

Item	Specification
Dye-Lite® ATF/Power Steering Fluid Leak Detection Dye 164-R3701 (Rotunda)	-
Motorcraft MERCON® LV Automatic Transmission Fluid XT-10-QLV	MERCON® LV

Check the transmission fluid filler tube at the transaxle case. If leakage is found here, install a new seal.

Check transmission fluid cooler tubes and fittings between the transaxle and the transmission fluid cooler for looseness, wear or damage. If leakage cannot be stopped by tightening a transmission fluid cooler tube nut to the correct specification, install new parts.

If the leak continues, install a new transmission fluid cooler tube fitting and tighten to specification. The same procedure should be followed for transmission fluid leaks between the transmission fluid cooler and the transmission fluid cooler tube fittings. Refer to TRANSAXLE/TRANSMISSION COOLING article.

The transmission fluid cooler can be further checked for leaks. Refer to TRANSAXLE/TRANSMISSION COOLING article.

If leakage is found at the Transmission Range (TR) manual control lever, install a new seal.

If leakage is found at the transaxle harness connector, install a new O-ring.

The transaxle has the following parts to prevent external transmission fluid leakage:

• Sealer
• Lip-type seals
• O-ring seals
• Seal rings
• Seal grommets
• Thread sealant
• Pan transmission fluid

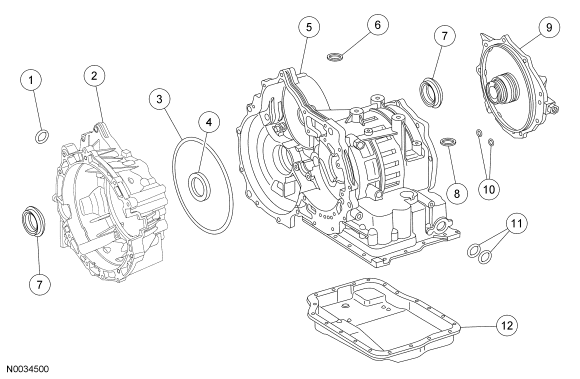

Item	Part Number	Description
1	W706315-S300	O-ring - Output Shaft Speed (OSS) sensor
2	-	Converter housing (sealant-to-case)
3	7A248	Seal - Pump
4	7A248	Seal - Pump
5	-	Case (sealant-to-converter housing)
6	W706316-S300	O-ring - Turbine Shaft Speed (TSS) sensor
7	1177	Seal assembly - Differential
8	-	O-ring - Bulkhead wiring connector
9	7222	Cover assembly - End (sealant-to-case)
10	7R284	Seals - Case cover (2 end cover-to-case)
11	7B498	Seals - Manual shaft - Transmission fluid (2 required)
12	-	Pan - Transmission fluid (sealant-to-case)
