Reverse Clutch: Notes
SPECIAL TOOLS
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft MERCON® LV Automatic Transmission Fluid XT-10-QLV |
MERCON® LV |

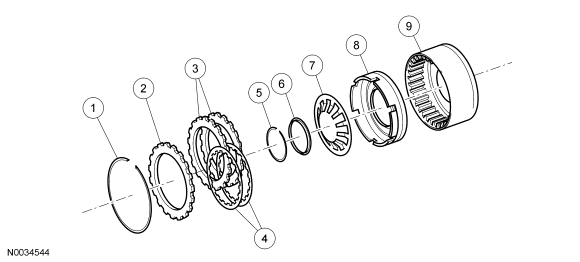

| Item | Part Number | Description |
|---|---|---|
| 1 | 7D483 | Retaining ring |
| 2 | 7B066 | Pressure plate |
| 3 | 7B442 | Steel plates |
| 4 | 7B164 | Friction plate assembly |
| 5 | 7H075 | Spring retainer ring |
| 6 | 7D406 | Spring retainer |
| 7 | 7B070 | Piston return spring |
| 8 | 7B402 | Piston assembly |
| 9 | 7D044 | Intermediate and overdrive drum assembly |
