Transmission Fluid Pan: Notes

MATERIAL

Item	Specification
Motorcraft MERCON® LV Automatic Transmission Fluid XT-10-QLV	MERCON® LV
Motorcraft Metal Surface Prep ZC-31-A	-
Ultra Silicone Sealant TA-29	-

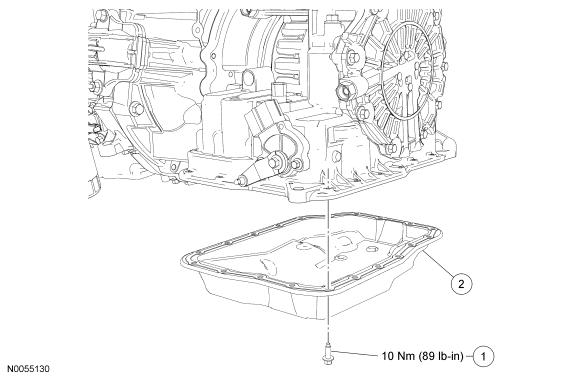

Fig 1: Transmission Fluid Pan Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500213-S437	Transmission fluid pan bolt (20 required)
2	7A194	Transmission fluid pan
