Fuel Level Sender: Notes

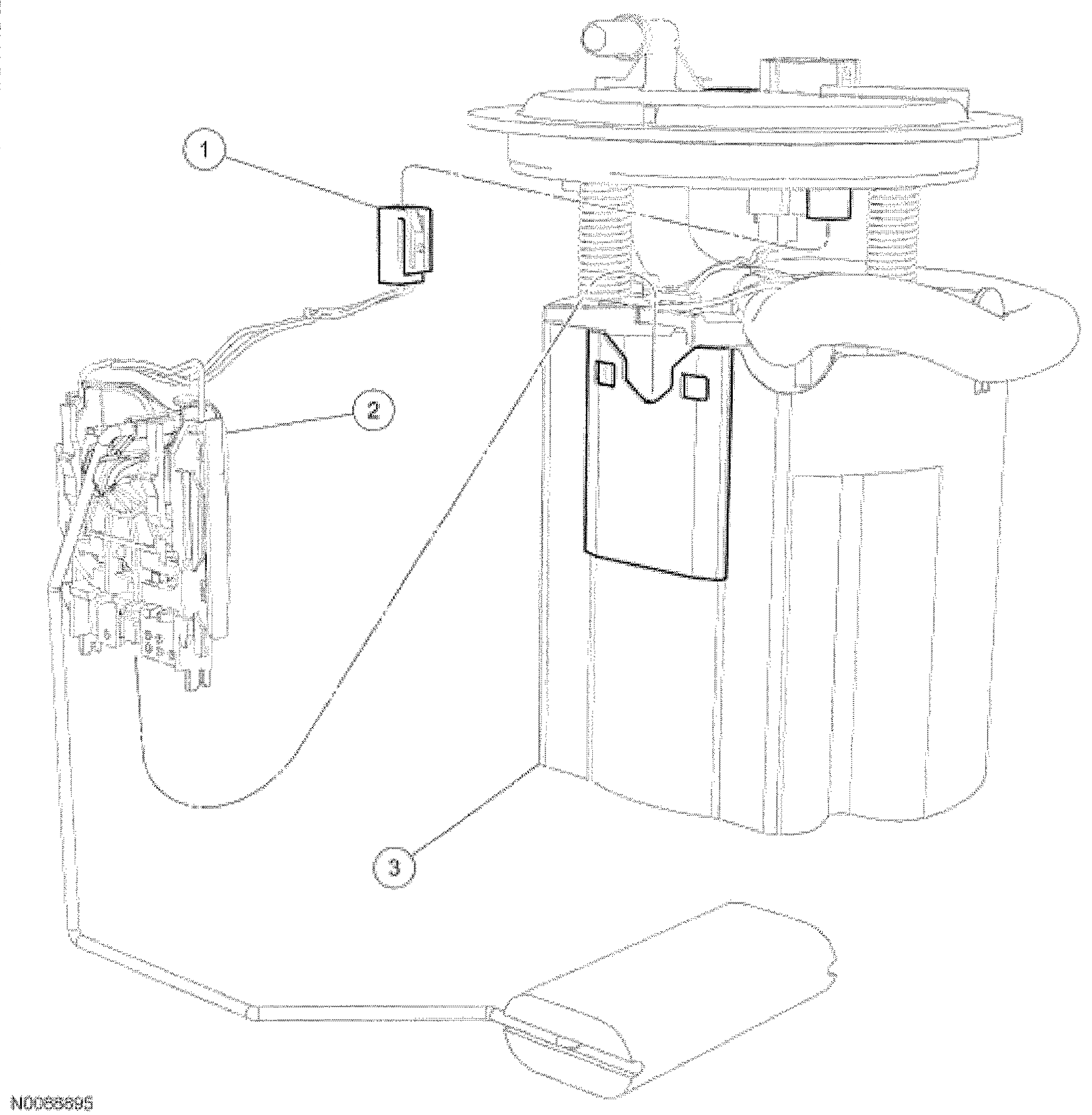

Fig 1: Identifying Fuel Level Sender Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fuel level sender electrical connector (part of 9A299)
2	9A299	Fuel level sender
3	9H307	Fuel pump (FP) module
