Steering Column Shaft: Notes

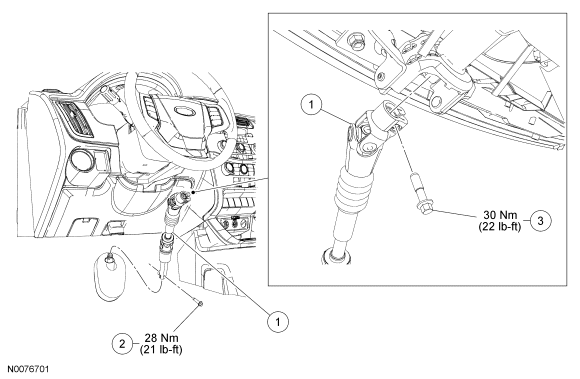

Fig 1: Steering Column Shaft Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
3B676
Upper steering column shaft
2
W706229
Upper steering column shaft-to-lower steering column shaft bolt
3
W712882
Upper steering column shaft-to-steering column bolt
