Output Shaft Speed (OSS) Sensor: Notes

MATERIAL

Item	Specification
Motorcraft MERCON® LV Automatic Transmission Fluid XT-10-QLV	MERCON® LV

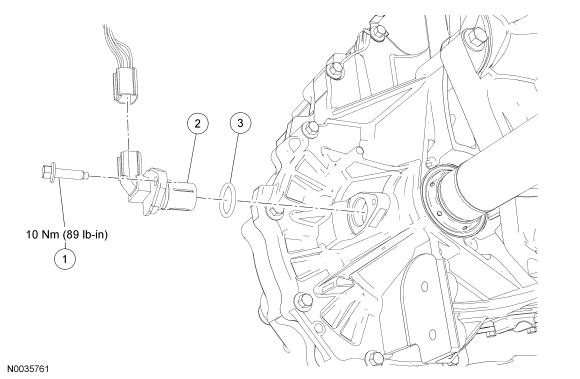

Fig 1: Output Shaft Speed (OSS) Sensor Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500214-S439	Bolt
2	7H103	Output Shaft Speed (OSS) sensor
3	W706315-S300	O-ring
