Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

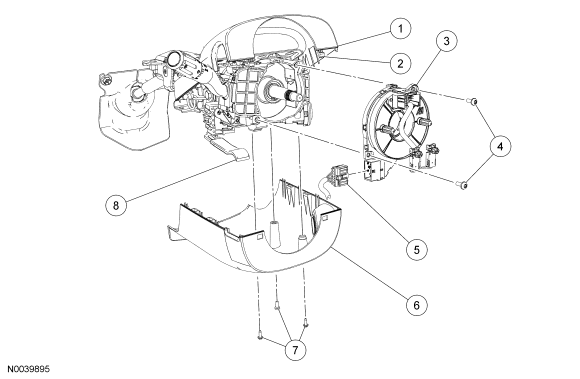

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | - | Upper steering column shroud tab (2 required) (part of 3530) |
| 3 | 14A644 | Clockspring |
| 4 | W506942 | Clockspring screws (2 required) |
| 5 | - | Clockspring electrical connector (part of 14401) |
| 6 | 3K512 | Lower steering column shroud |
| 7 | - | Lower steering column shroud screws (3 required) (part of 3K512) |
| 8 | - | Steering column tilt lock/unlock handle |
