Four Wheel Drive Control Module Connector - C3253

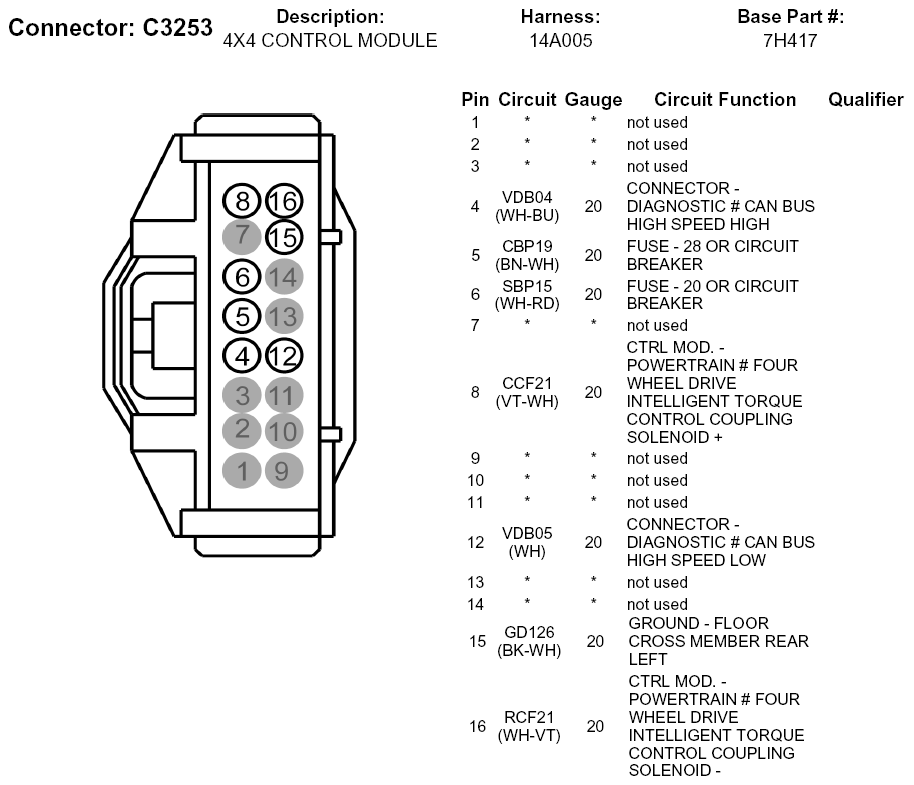

Fig 1: Four Wheel Drive Control Module Connector End View (C3253)
G05770095Courtesy of FORD MOTOR CO.
