Occupant Classification Sensor: Notes
WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

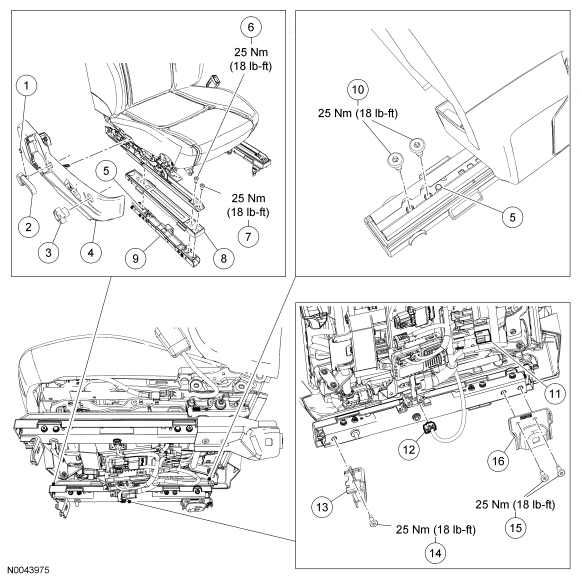

Outboard shown, inboard similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Manual recliner handle spring clip (part of 61198) |
| 2 | 61198 | Manual recliner handle |
| 3 | 62622 | Manual lumbar control knob |
| 4 | 62186 | Seat cushion side shield |
| 5 | - | Occupant classification sensor (OCS) system rail locating pin (part of 61708) |
| 6 | - | OCS system rail front mounting position rear bolt (part of 61708) |
| 7 | - | OCS system rail front mounting position front bolt (part of 61708) |
| 8 | 62126 | OCS system rail shield |
| 9 | 61708 | OCS system rail |
| 10 | - | OCS system rail rear bolts (part of 61708) |
| 11 | - | Power seat track motor electrical connector (part of 14A698) (if equipped) |
| 12 | - | OCS system rail electrical connector (part of 14A698) |
| 13 | 61913 | Forward seat riser |
| 14 | - | Forward seat riser bolt |
| 15 | - | Rearward seat riser bolts |
| 16 | 61913 | Rearward seat riser |
