Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

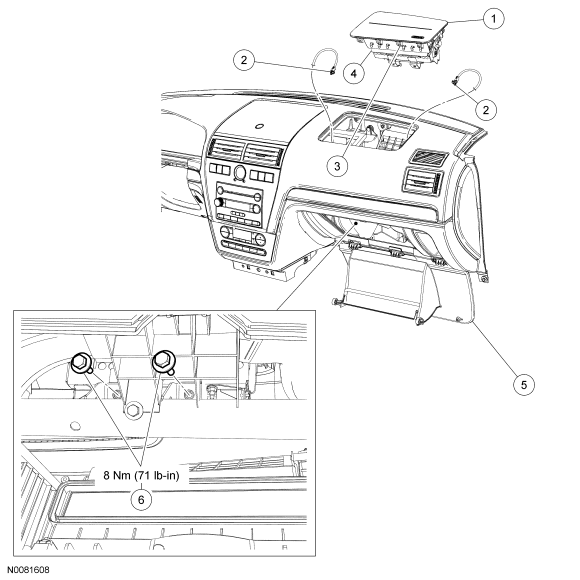

Fig 1: Exploded View Of Passenger Air Bag Module - Fusion/Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04338	Air bag trim cover
2	-	Passenger air bag module electrical connectors (part of 14401)
3	-	Passenger air bag cover clip
4	044A74	Passenger air bag module assembly
5	060T10	Glove compartment door
6	W505422	Passenger air bag module bolts (2 required)

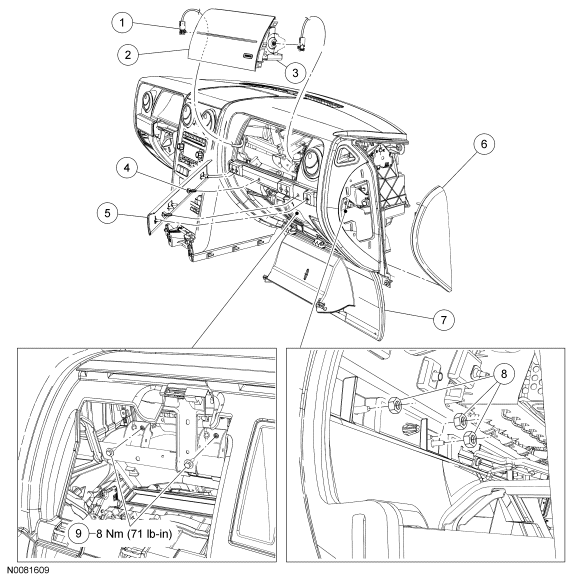

Fig 2: Exploded View Of Passenger Air Bag Module With Torque Specification - MKZ

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Passenger air bag module electrical connector (2 required) (part of 14401)
2	04338	Air bag trim cover
3	044A74	Passenger air bag module assembly
4	-	RH instrument panel trim panel clip (2 required) (part of 044K54)
5	044K54	RH instrument panel trim panel
6	04480	Instrument panel end panel
7	060T10	Glove compartment door
8	-	RH instrument panel trim panel nuts (5 required) (044K54)
9	W505422	Passenger air bag module bolts (2 required)
