Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

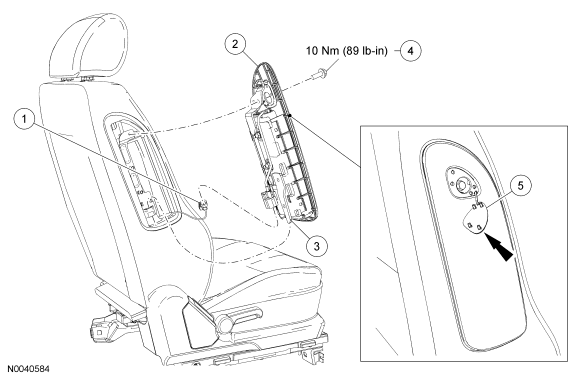

| Item |
Part Number |
Description |
| 1 |
- |
Side air bag module electrical connector (part of 14K155) |
| 2 |
611D10 |
Side air bag module |
| 3 |
- |
Side air bag module locator hook (part of 611D10) |
| 4 |
N605892 |
Side air bag module bolt |
| 5 |
- |
Side air bag module bolt cover (part of 611D10) |
