Safety Belt Buckle - Rear
›
Notes
Safety Belt Buckle - Rear: Notes

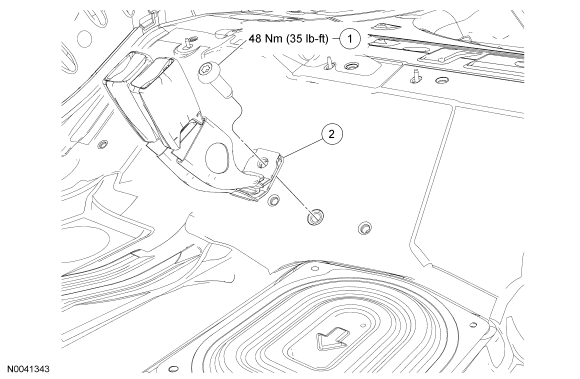

Fig 1: Exploded View Of Rear Safety Belt Buckle With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Bolt (part of 60044)
2
60044
RH and center safety belt buckle assembly
