Fuel Pump Module Connector - C4331

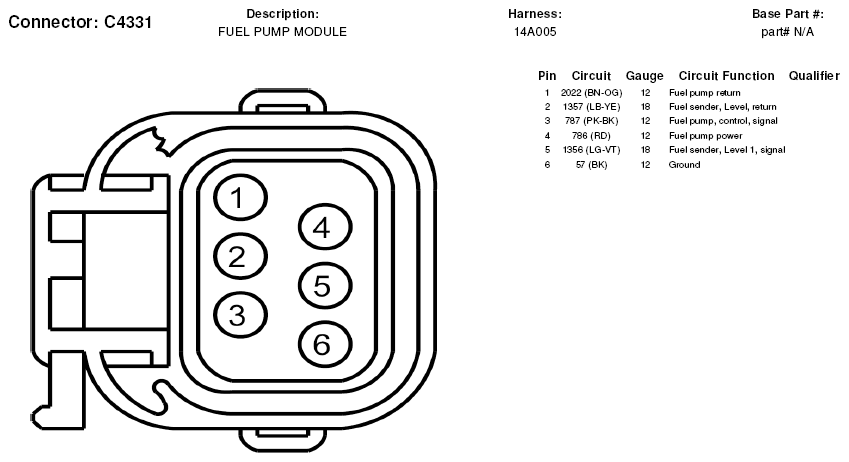

Fig 1: Fuel Pump Module Connector End View (C4331)
G05603021Courtesy of FORD MOTOR CO.
