Transmission Support Crossmember: Notes

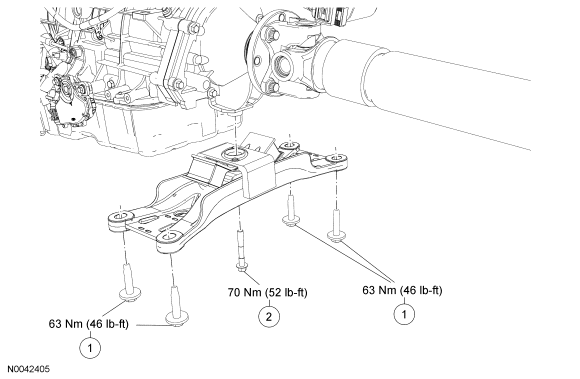

Fig 1: Exploded View Of Transmission Support Crossmember With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Transmission crossmember-to-floor pan screws
2	-	Transmission insulator-to-extension housing center screw
