Generator - Diesel Engines, Dual Generators: Notes
NOTE:
This procedure applies to the secondary generator of the dual generator system.

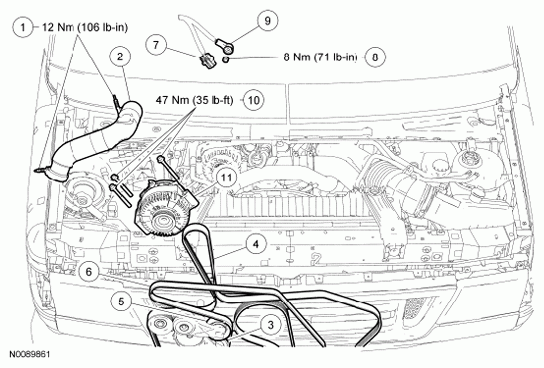

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K786 | Charge Air Cooler (CAC) tube clamps (2 required) |
| 2 | 6K769 | CAC tube |
| 3 | 6B209 | Accessory drive belt tensioner (primary) |
| 4 | 8620 | Accessory drive belt (primary) |
| 5 | 6B209 | Accessory drive belt tensioner (secondary) |
| 6 | 8620 | Accessory drive belt (secondary |
| 7 | - | Generator electrical connector (part of 14B060) |
| 8 | - | Generator B+ terminal nut (part of 14B060) |
| 9 | - | Generator B+ terminal (part of 14305) |
| 10 | N606068 | Generator bolts (3 required) |
| 11 | 10300 | Generator |
