Glow Plug Module: Notes

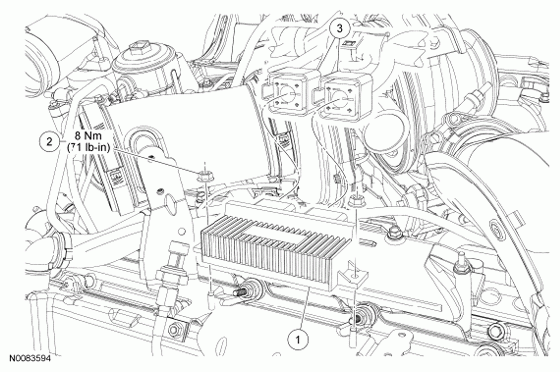

Fig 1: Glow Plug Module With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	12B533	Glow plug module
2	W300049	Glow plug module nut (2 required)
3	14A464	Glow plug module electrical connectors (part of 12B637)
