Performance Diagnostic Procedures: Notes

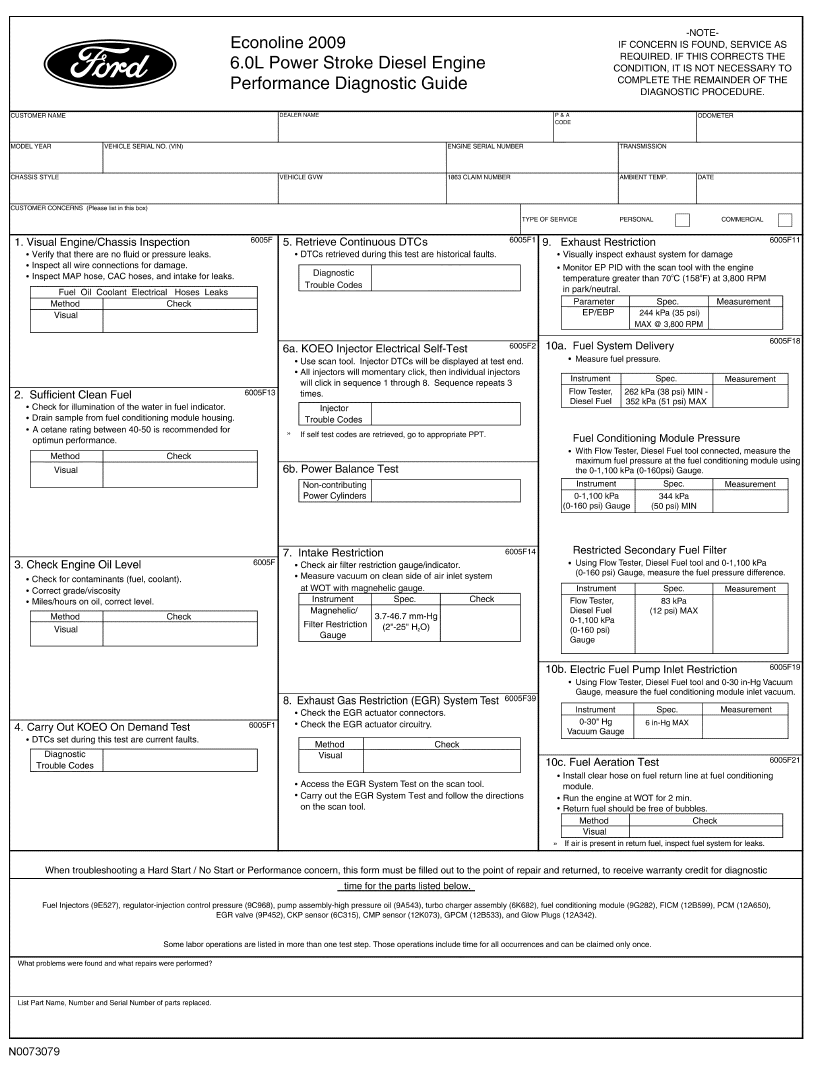

Fig 1: Performance Diagnostic Procedures Chart (1 Of 2)
G06054150Courtesy of FORD MOTOR CO.

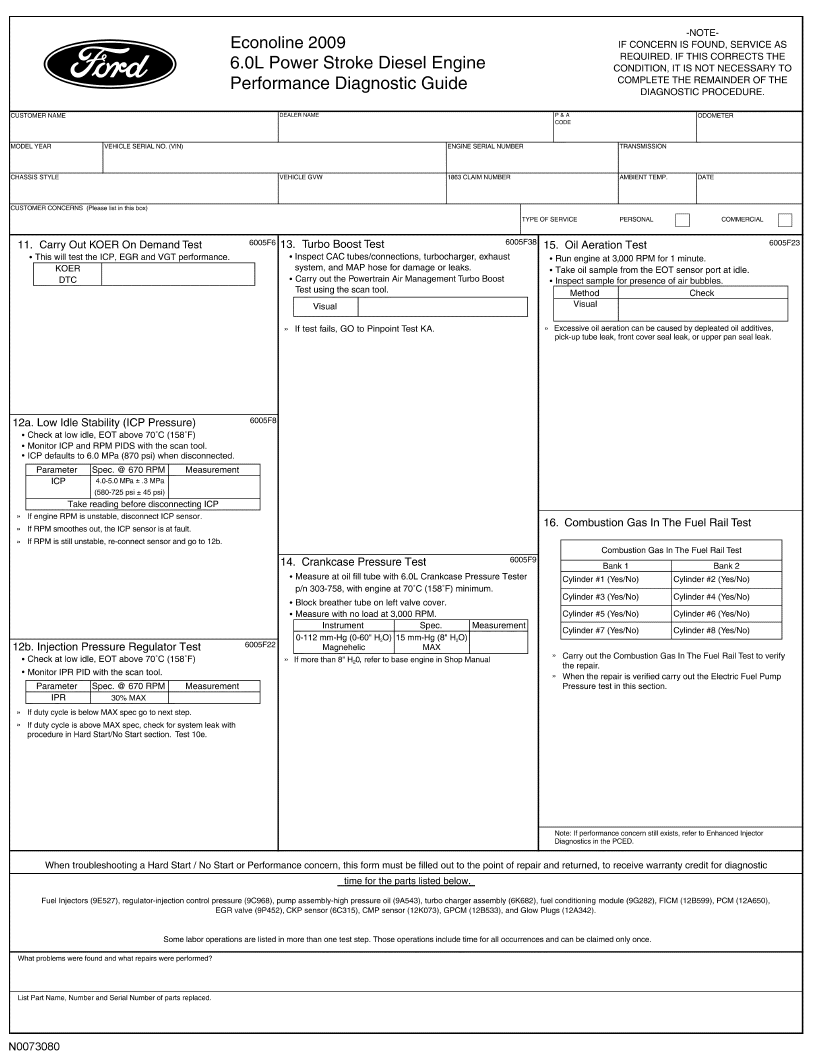

Fig 2: Performance Diagnostic Procedures Chart (2 Of 2)
G06054151Courtesy of FORD MOTOR CO.
