Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00458426

Courtesy of FORD MOTOR CO.

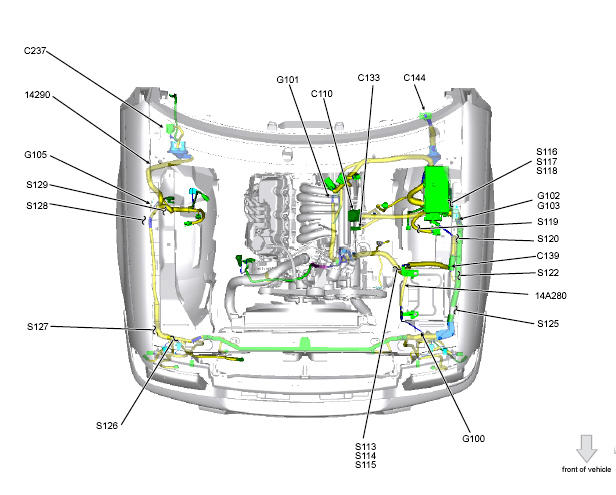

Fig 2: Engine Compartment (3.0L)

G00458427

Courtesy of FORD MOTOR CO.

Fig 3: Left Side Of Engine (2.3L)

G00458428

Courtesy of FORD MOTOR CO.

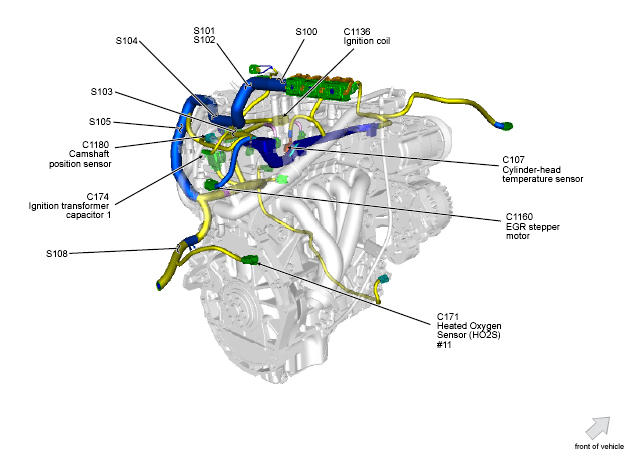

Fig 4: Right Side Of Engine (2.3L)

G00458429

Courtesy of FORD MOTOR CO.

Fig 5: Left Side Of Engine (3.0L)

G00458430

Courtesy of FORD MOTOR CO.

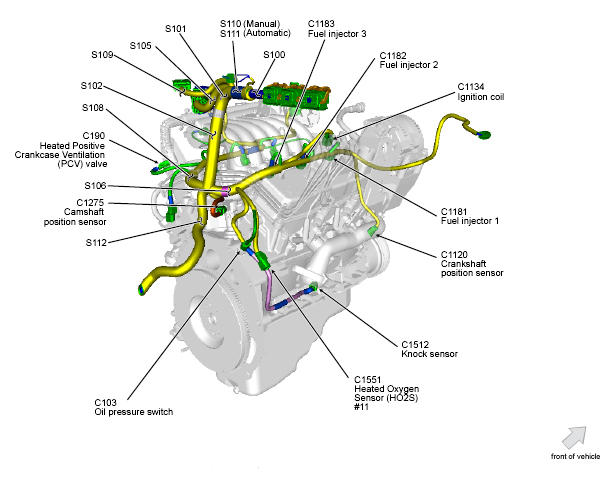

Fig 6: Right Side Of Engine (3.0L)

G00458431

Courtesy of FORD MOTOR CO.

Fig 7: Left Side Of Engine (4.0L)

G00458432

Courtesy of FORD MOTOR CO.

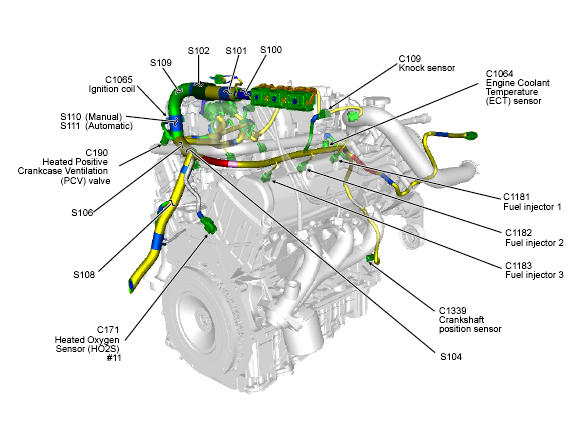

Fig 8: Right Side Of Engine (4.0L)

G00458433

Courtesy of FORD MOTOR CO.

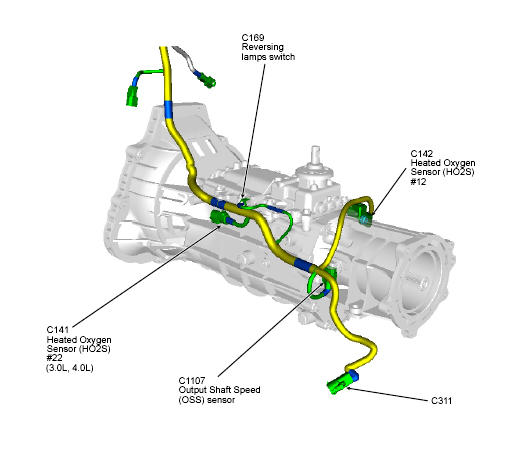

Fig 9: Manual Transmission

G00458434

Courtesy of FORD MOTOR CO.

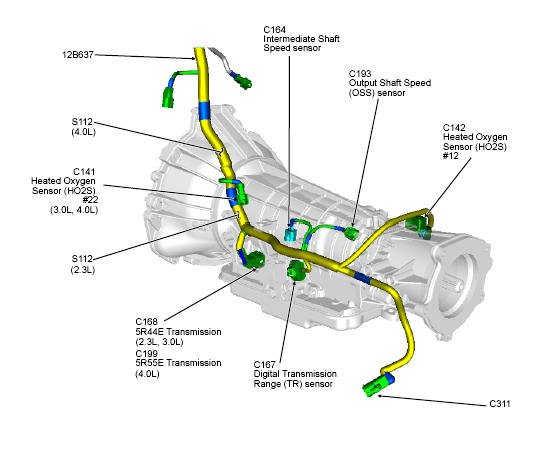

Fig 10: Automatic Transmission

G00458435

Courtesy of FORD MOTOR CO.

Fig 11: Dash

G00458436

Courtesy of FORD MOTOR CO.

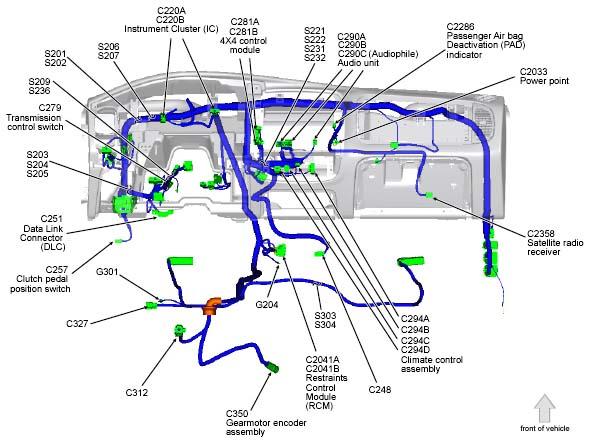

Fig 12: Dash

G00458437

Courtesy of FORD MOTOR CO.

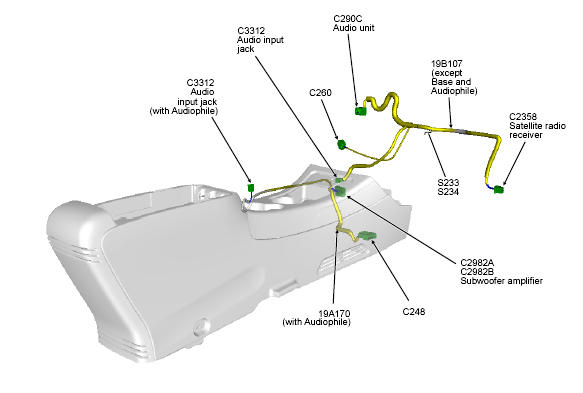

Fig 13: Center Console

G00458438

Courtesy of FORD MOTOR CO.

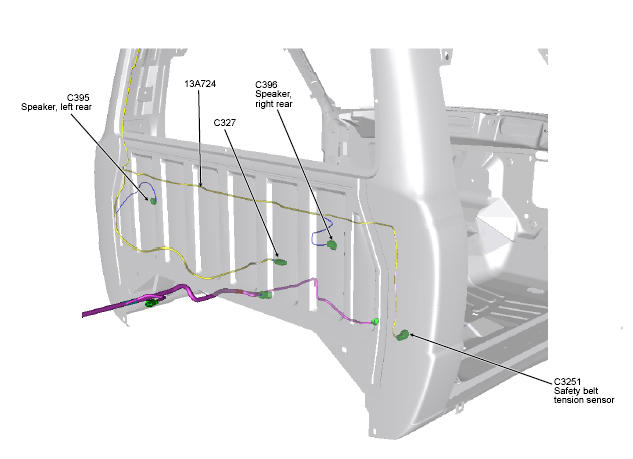

Fig 14: Regular Cab

G00458439

Courtesy of FORD MOTOR CO.

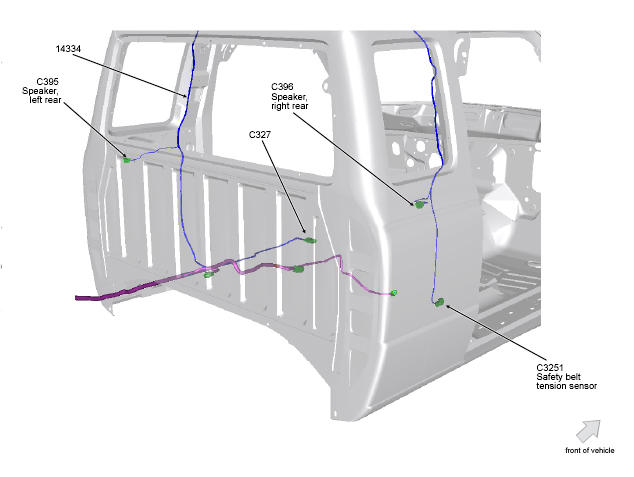

Fig 15: Super Cab (2 Door)

G00458440

Courtesy of FORD MOTOR CO.

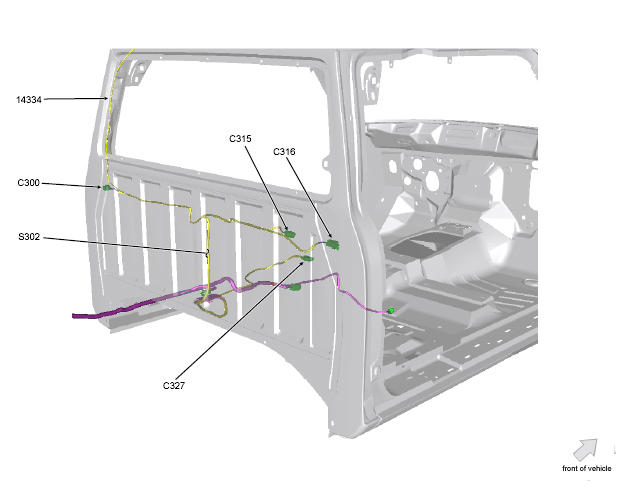

Fig 16: Super Cab (4 Door)

G00458441

Courtesy of FORD MOTOR CO.

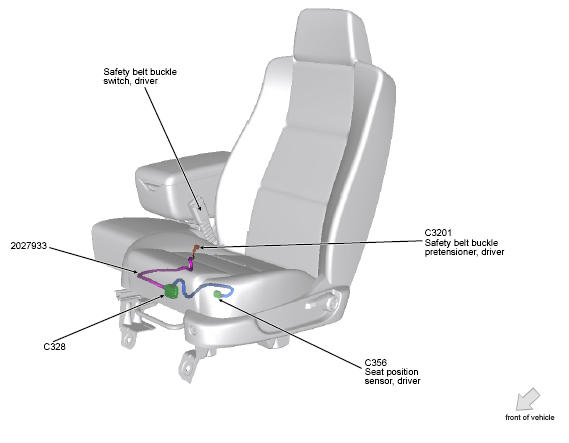

Fig 17: Driver's Seat

G00458442

Courtesy of FORD MOTOR CO.

Fig 18: Front Passenger's Seat

G00458443

Courtesy of FORD MOTOR CO.

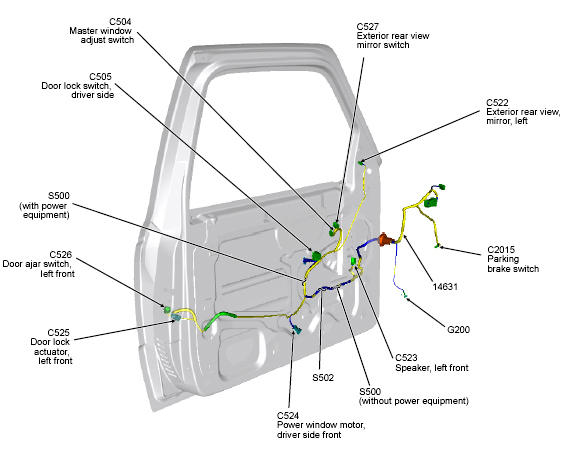

Fig 19: Driver's Door

G00458444

Courtesy of FORD MOTOR CO.

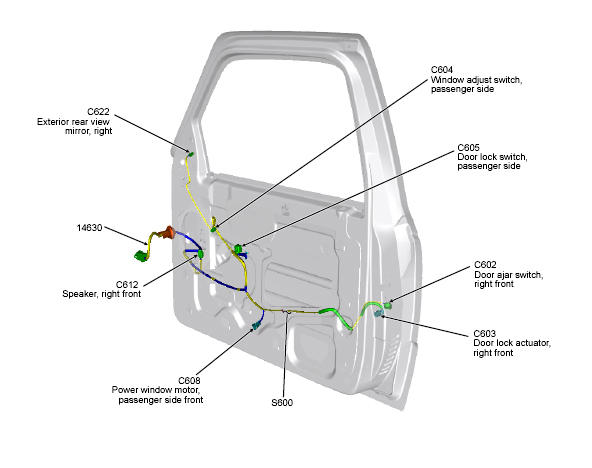

Fig 20: Front Passenger's Door

G00458445

Courtesy of FORD MOTOR CO.

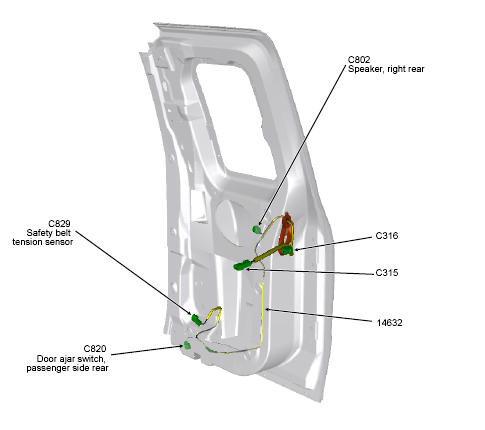

Fig 21: Right Rear Door

G00458446

Courtesy of FORD MOTOR CO.

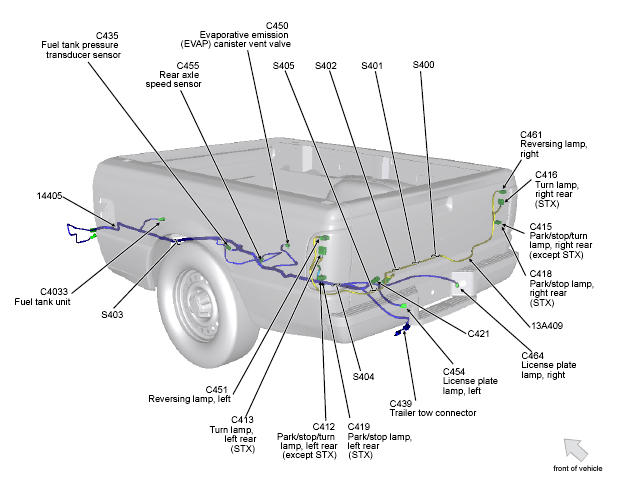

Fig 22: Truck Bed

G00458447

Courtesy of FORD MOTOR CO.

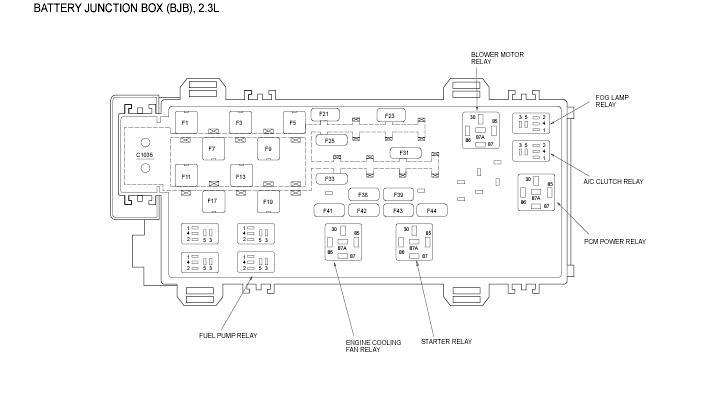

Fig 23: Battery Junction Box (2.3L)

G00458448

Courtesy of FORD MOTOR CO.

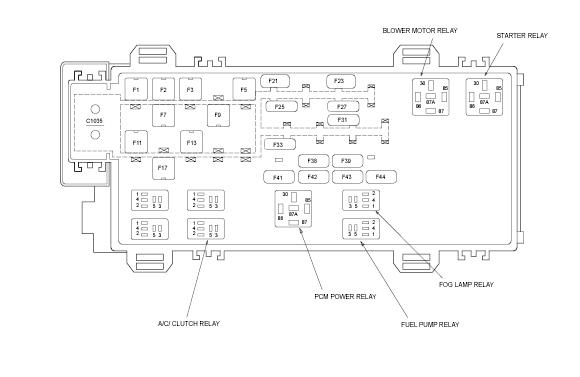

Fig 24: Battery Junction Box (3.0L & 4.0L)

G00458449

Courtesy of FORD MOTOR CO.

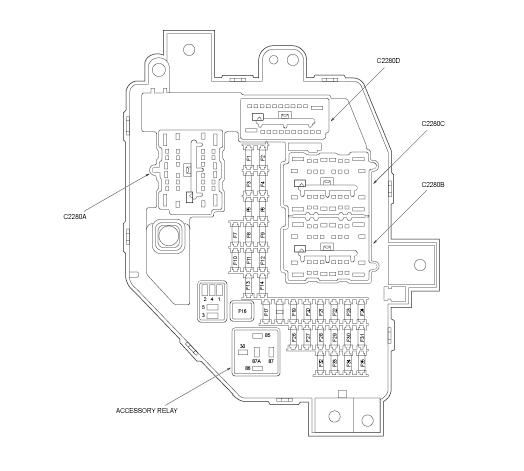

Fig 25: Smart Junction Box

G00458450

Courtesy of FORD MOTOR CO.
