Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left side of engine compartment. See Figure. |

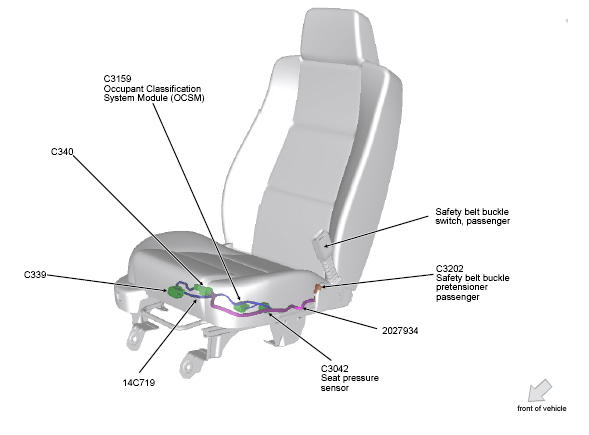

| Occupant Classification Sensor (OCS) Module | Under front passenger's seat. See Figure. |

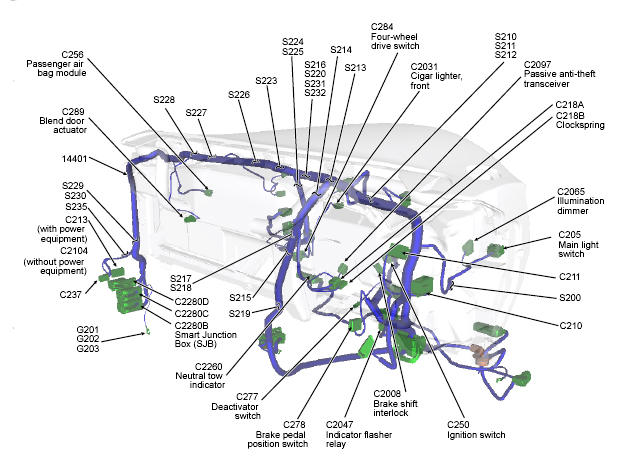

| Passenger Air Bag Module | Right side of dash. See Figure. |
| Passive Anti-Theft Transceiver | Bottom of steering column. See Figure. |

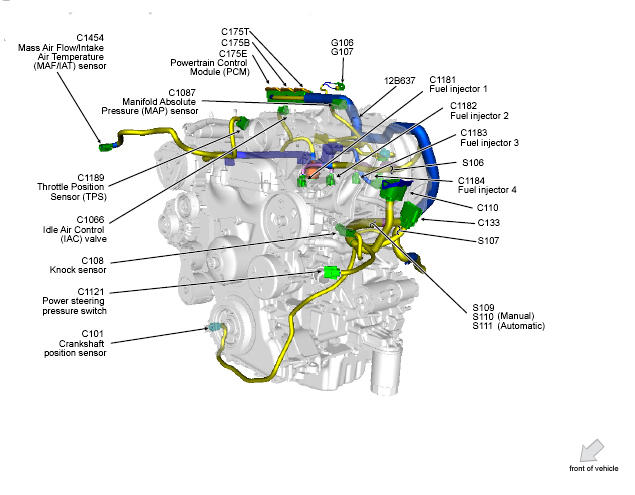

| Powertrain Control Module (PCM) (2.3L) | Right rear of engine compartment. See Figure. |

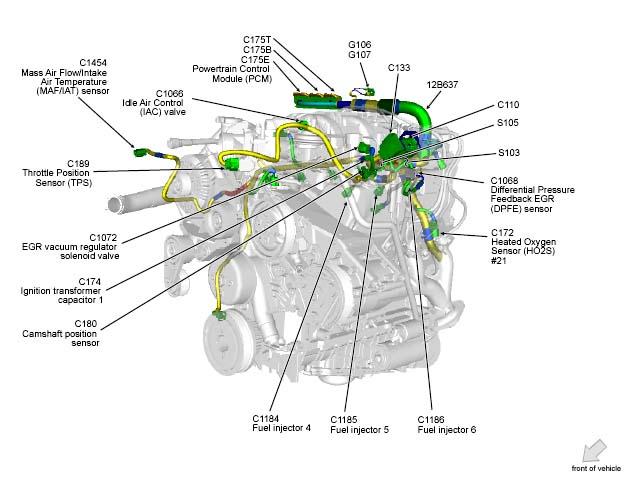

| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment. See Figure. |

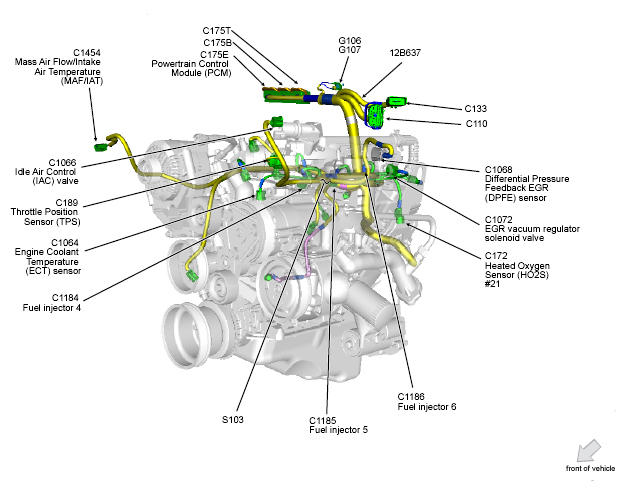

| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment. See Figure. |
