Exhaust System - Exploded View

Vehicles with 2.3L

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed from art for clarity.

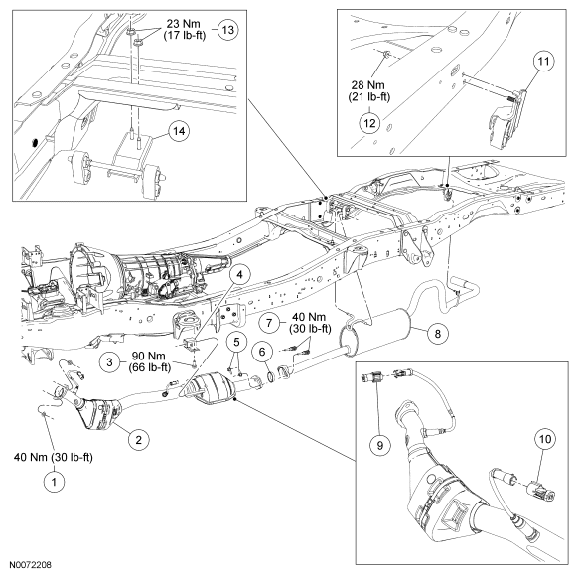

Fig 1: Exploded View Of Exhaust System With Torque Specifications (Vehicles With 2.3L)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W520414	Exhaust downpipe-to-exhaust manifold nut (2 required)
2	5E212	Exhaust downpipe
3	390066	Transmission mount and isolator-to-transmission bolt
4	5E269	Exhaust isolator
5	N802641	Exhaust downpipe-to-muffler and tail pipe assembly flag nuts (2 required)
6	5E241	Exhaust downpipe-to-muffler and tail pipe assembly gasket
7	5G215	Exhaust downpipe-to-muffler and tail pipe assembly bolts (2 required)
8	5230	Muffler and tail pipe assembly
9	-	Heated Oxygen Sensor (HO2S) electrical connector (part of 12A581)
10	-	Catalyst Monitor Sensor (CMS) electrical connector (part of 12A581)
11	5260	Tail pipe bracket and isolator assembly
12	W520413	Tail pipe bracket and isolator assembly nut
13	W520413	Muffler bracket and isolators assembly nuts (2 required)
14	5A246	Muffler bracket and isolators assembly

Vehicles with 4.0L

NOTE: Exhaust system will vary by wheelbase.

NOTE: Vehicle body removed from art for clarity.

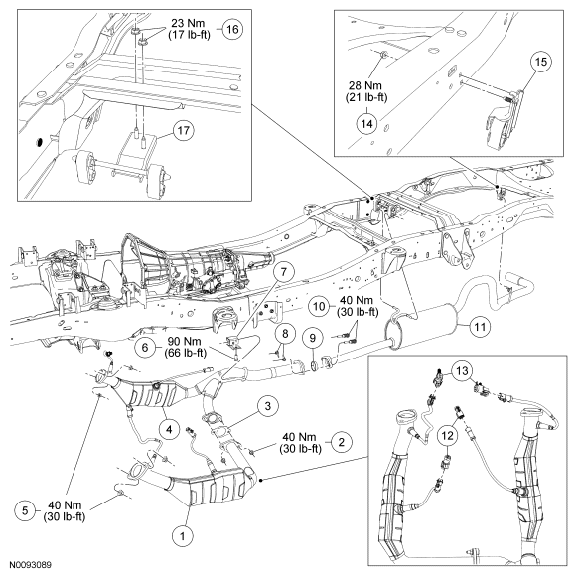

Fig 2: Exploded View Of Exhaust System With Torque Specifications (Vehicles With 4.0L)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	5E212	LH side of exhaust Y-pipe
2	W520414	LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe nut (2 required)
3	5B266	LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe gasket
4	5E212	RH side of exhaust Y-pipe
5	W520414	Exhaust Y-pipe assembly-to-exhaust manifold nuts (4 required)
6	390066	Transmission mount and isolator-to-transmission bolt
7	5E269	Exhaust isolator
8	N802641	RH side of exhaust Y-pipe-to-muffler and tail pipe assembly flange nuts (2 required)
9	5E241	RH side of exhaust Y-pipe-to-muffler and tail pipe assembly gasket
10	5G215	RH side of exhaust Y-pipe-to-muffler and tail pipe assembly bolts (2 required)
11	5230	Muffler and tail pipe assembly
12	-	Catalyst Monitor Sensor (CMS) electrical connectors (part of 12A581)
13	-	Heated Oxygen Sensor (HO2S) electrical connectors (part of 12A581)
14	W520413	Tail pipe bracket and isolator assembly nut
15	5260	Tail pipe bracket and isolator assembly
16	W520413	Muffler bracket and isolators assembly nuts (2 required)
17	5A246	Muffler bracket and isolators assembly
