Left Front Wheel Speed Sensor Connector - C150
Left Front Wheel Speed Sensor Connector - C150

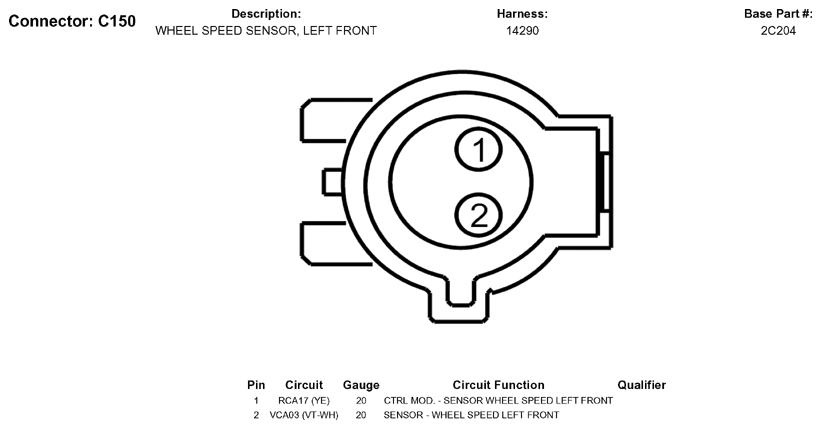

Fig 1: Left Front Wheel Speed Sensor Connector End View (C150)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
