Luggage Compartment Lid: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

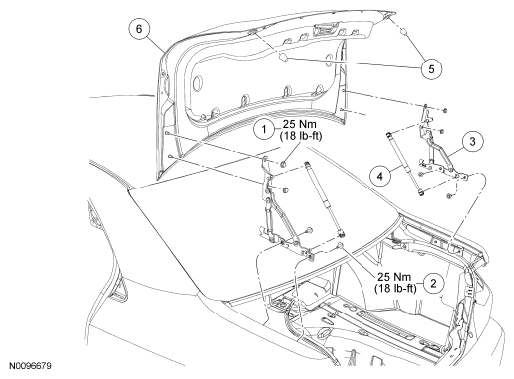

Fig 1: Exploded View Of Luggage Compartment Lid Components With Torque Specifications
G06271389Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 N811478-S Hinge-to-luggage compartment lid nut (4 required)
2 W503931 Hinge-to-body bolt (4 required)
3 42700 RH/42701 LH Luggage compartment lid hinge
4 54406A10 Luggage compartment lid assist strut (RH/LH)
5 W712985 Luggage compartment bumper (2 required)
6 40110 Luggage compartment lid
