Console Power Point Connector - C380
Console Power Point Connector - C380

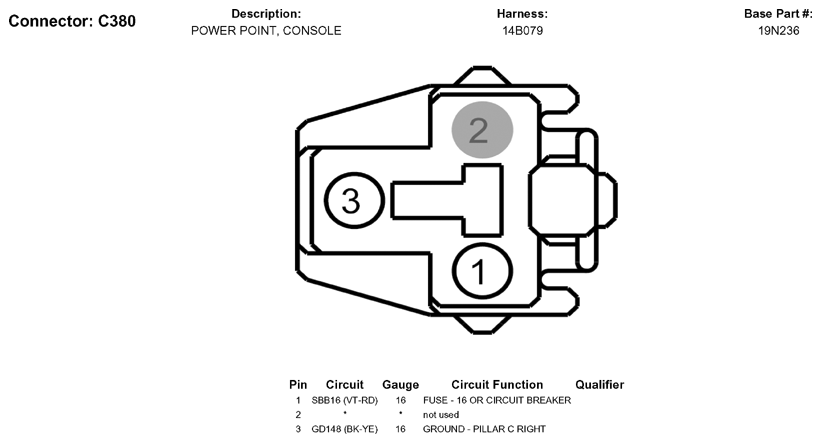

Fig 1: Console Power Point Connector End View (C380)
Courtesy of FORD MOTOR CO.
