Driver Side Front Power Window Motor Connector - C524
Driver Side Front Power Window Motor Connector - C524

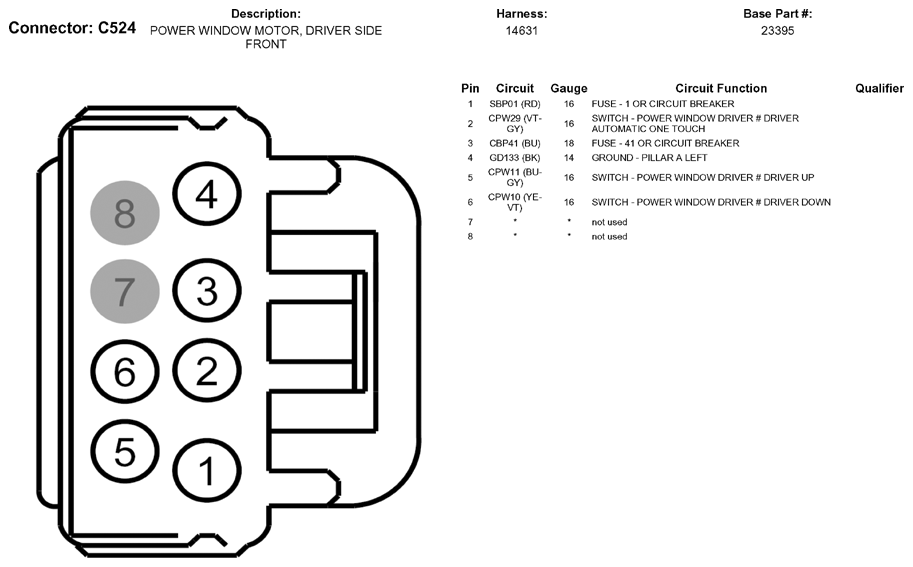

Fig 1: Driver Side Front Power Window Motor Connector End View (C524)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
