Memory Set Switch Connector - C503
Memory Set Switch Connector - C503

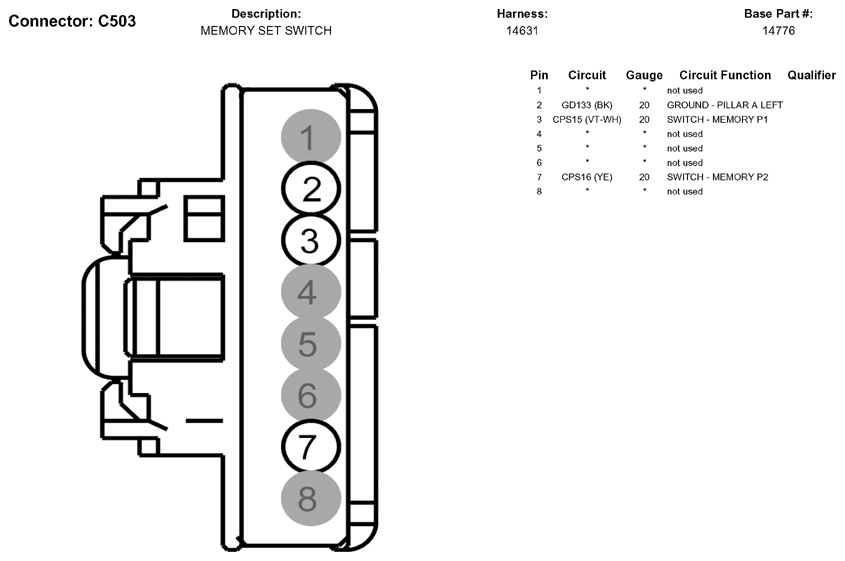

Fig 1: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.
