Satellite Digital Audio Receiver System Module Connector - C4344
Satellite Digital Audio Receiver System Module Connector - C4344

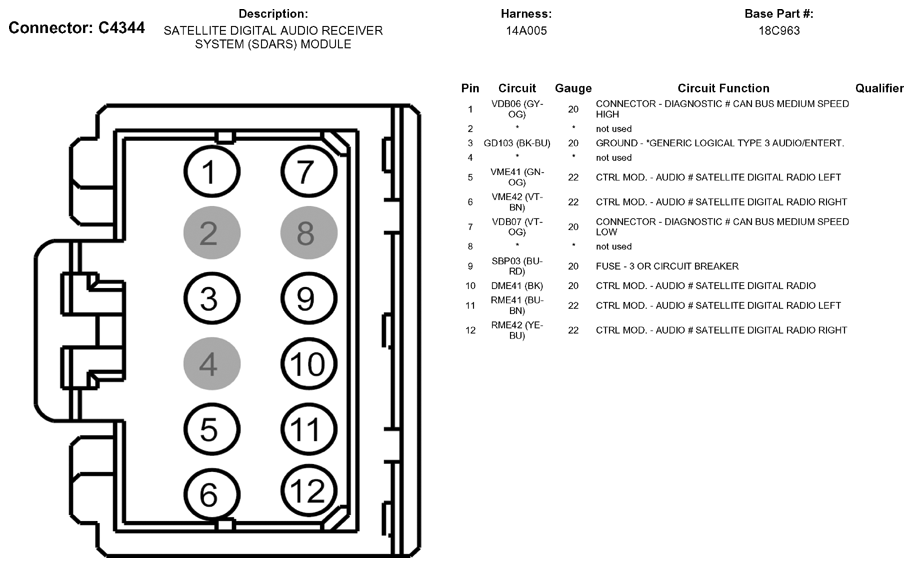

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C4344)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
