Spring Lock Couplings: Connect

Inspect and clean the tube fitting, spring lock coupling and the O-ring seals.
- Lubricate the O-ring seals with clean engine oil.

  Fig 1: Locating Tube Fitting, Spring Lock Coupling And O-Ring Seals
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the spring lock coupling is completely seated and locked in place by pulling on the coupling.

Fig 2: Connecting Spring Lock Coupling Onto Tube Fitting

Courtesy of FORD MOTOR CO.

Connect the spring lock coupling onto the tube fitting.
Install the safety clip.

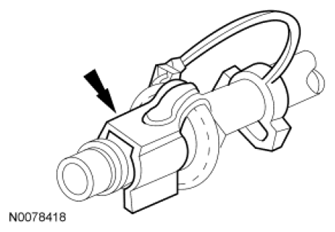

Fig 3: Locating Safety Clip
Courtesy of FORD MOTOR CO.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
