Special Tool(s)

SPECIAL TOOL DESCRIPTION CHART

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

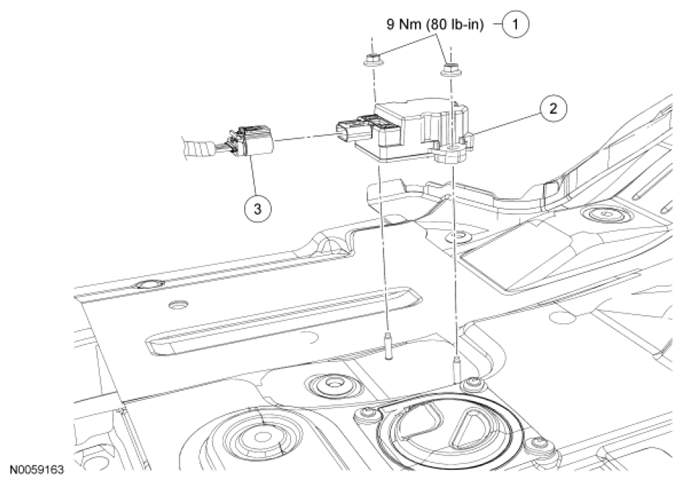

Fig 1: Stability Control Sensor Cluster, Connector And Mounting Nuts With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W707142	Stability control sensor cluster nuts (2 required)
2	3C187	Stability control sensor cluster
3	-	Stability control sensor cluster electrical connector (part of 14A005)
