Light Sensor Connector - C287
Light Sensor Connector - C287

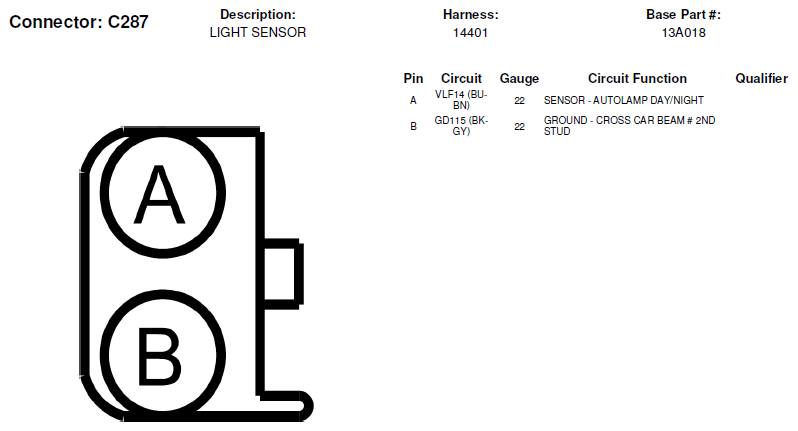

Fig 1: Light Sensor Connector End View (C287)
Courtesy of FORD MOTOR CO.
