Brake Shift Interlock Override

All vehicles

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify that the brake lights are working.

This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position unless the brake pedal is depressed.

If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is depressed carry out the following procedure:

Apply the parking brake.
MKX only
Using a suitable tool, remove the selector lever trim ring.

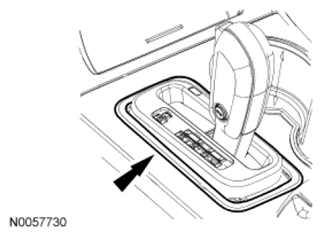

Fig 1: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.

All vehicles
Lift the armrest. Using a suitable tool, remove the center console trim cover.

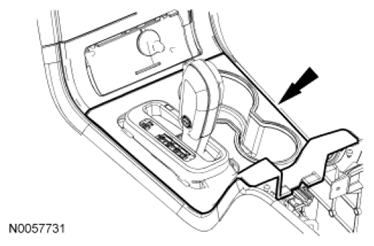

Fig 2: Locating Center Console Trim Cover
Courtesy of FORD MOTOR CO.
From the right side of the selector lever, push the brake shift interlock override forward, apply the brake, press the selector lever knob button and move the selector lever into NEUTRAL.

Fig 3: Pressing Selector Lever Knob Button
Courtesy of FORD MOTOR CO.
Start the vehicle.
Install the center console trim cover.

Fig 4: Locating Center Console Trim Cover
Courtesy of FORD MOTOR CO.

MKX only
Install the selector lever trim ring.

Fig 5: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
