Hydraulic Control Unit (HCU): Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

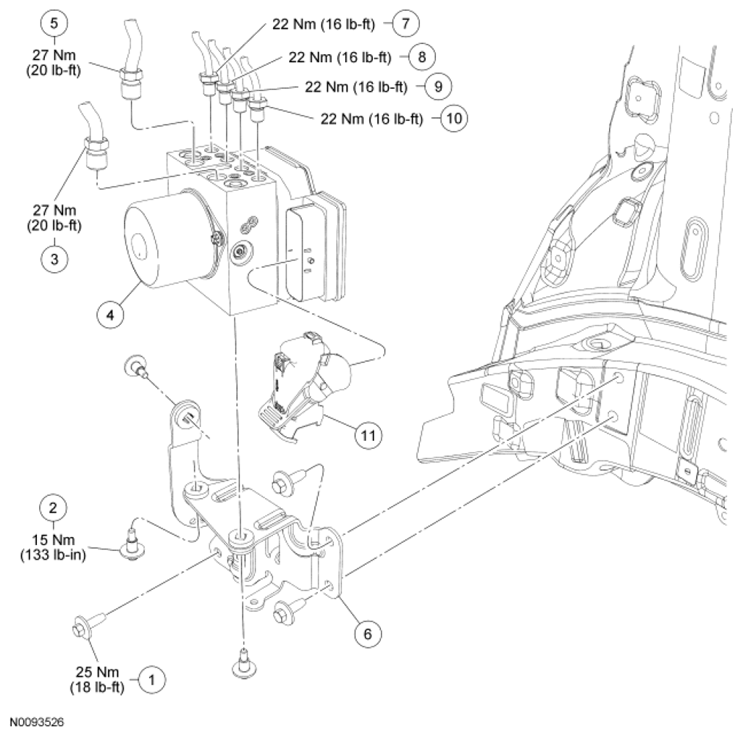

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707402 | Hydraulic Control Unit (HCU) bracket-to-frame bolt (3 required) |
| 2 | - | HCU bracket-to- HCU bolt (3 required) (part of 2C304) |
| 3 | 2286 | Master cylinder primary brake tube fitting |
| 4 | 2C286 | HCU |
| 5 | - | Master cylinder secondary brake tube fitting (part of 2A335) |
| 6 | 2C304 | HCU bracket |
| 7 | - | RF brake caliper brake tube fitting (part of 2263) |
| 8 | - | RR brake caliper brake tube fitting (part of 2C293) |
| 9 | - | LR brake caliper brake tube fitting (part of 2C294) |
| 10 | - | LF brake caliper brake tube fitting (part of 2264) |
| 11 | - | ABS module electrical connector (part of 14290) |
