Driver Side Air Bag Module Connector - C3321
Driver Side Air Bag Module Connector - C3321

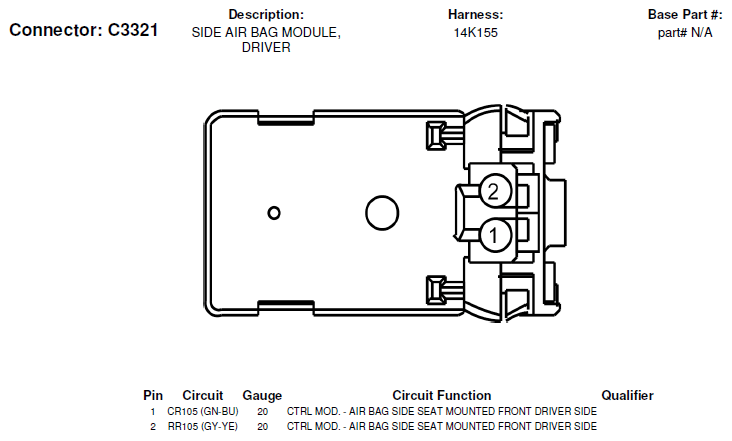

Fig 1: Driver Side Air Bag Module Connector End View (C3321)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
