Smart Wiper Module Connector - C1552
Smart Wiper Module Connector - C1552

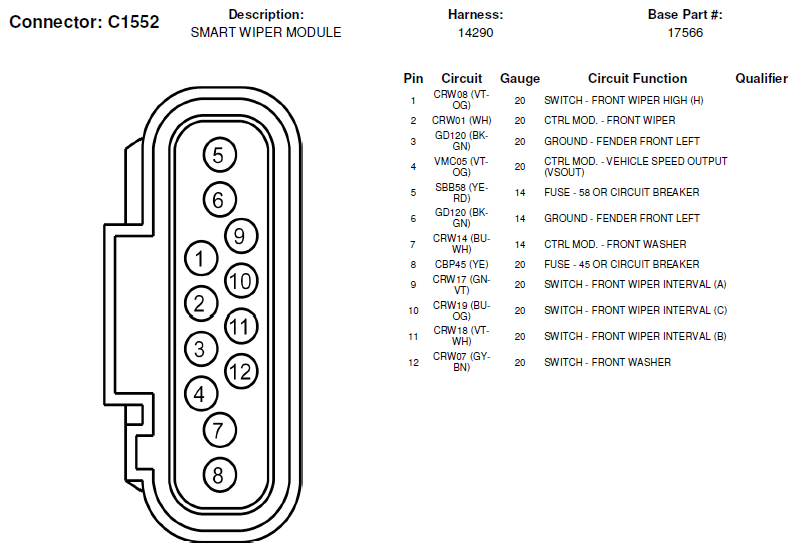

Fig 1: Smart Wiper Module Connector End View (C1552)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
