3rd Gear: Notes

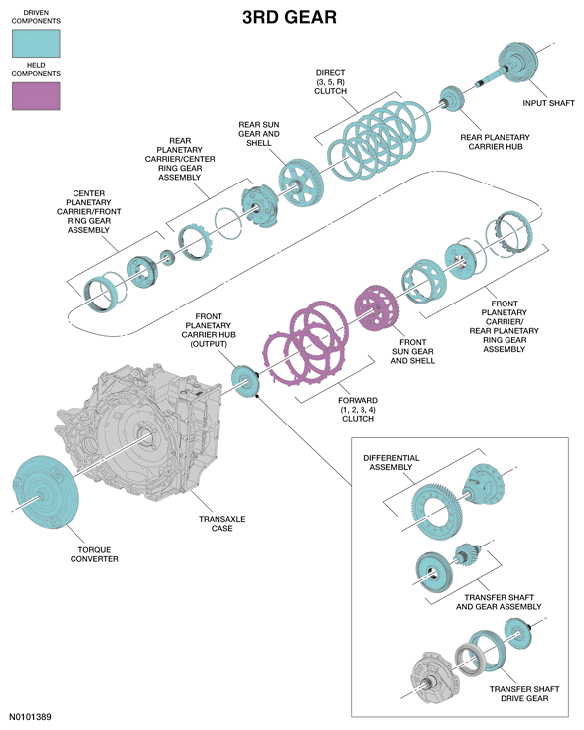

Fig 1: Identifying 3rd Gear And Transaxle Case Components
G06259926Courtesy of FORD MOTOR CO.
