Main Control Valve Body: Notes

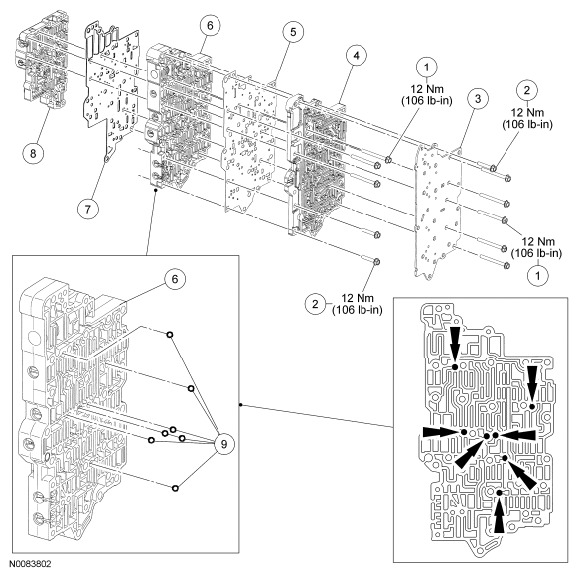

Fig 1: Main Control Valve Body Parts With Torque Specifications
G06076314Courtesy of FORD MOTOR CO.
