Anti-Lock Brake System Test Connector - C126
Anti-Lock Brake System Test Connector - C126

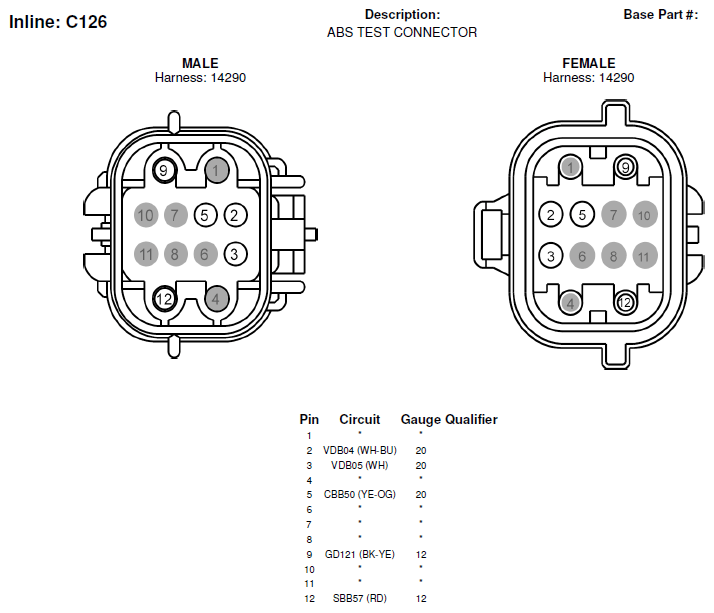

Fig 1: Anti-Lock Brake System Test Connector End View (C126)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
